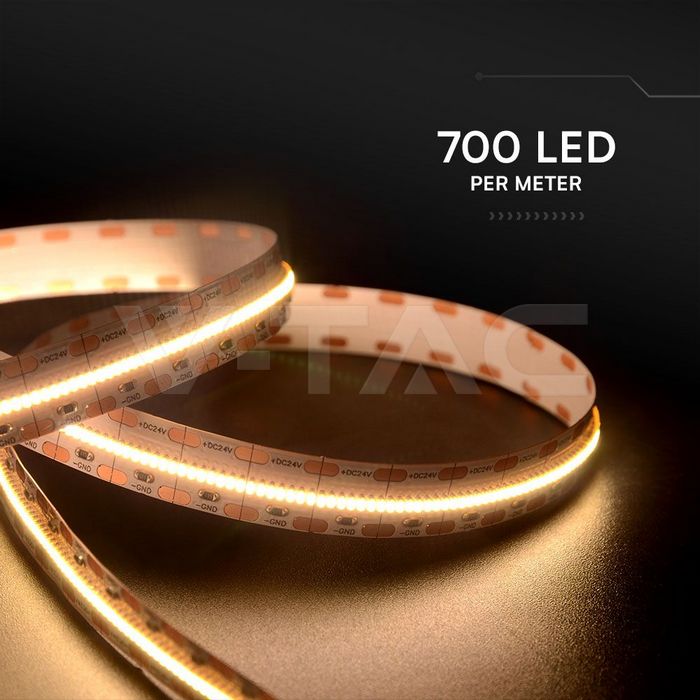

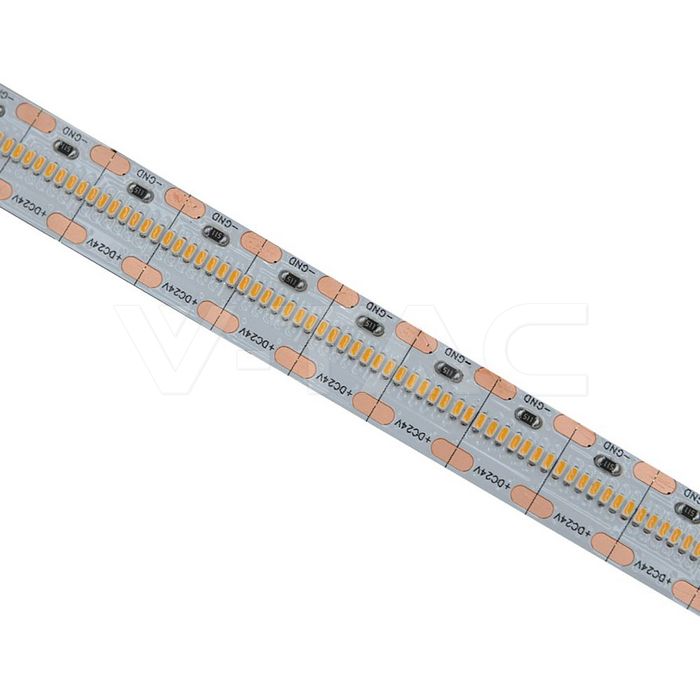

LED SMD Strip Light 22W/m 700 4000K 24V IP20 5m/Roll

SKU: 212603 | VT: VT-2110
212603-2
212603-3
212603-4
212603-5
212603-6
212603-7
212603-8
212603-9

Downloads
Product Information Sheet
PPWR Declaration of Conformity
Specifications
General Information

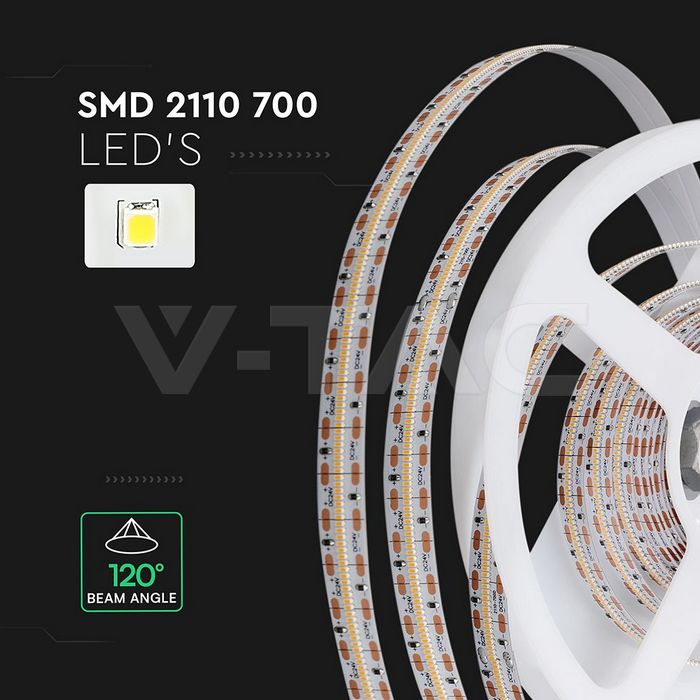

LED Chip
SMD2110
Electrical Data
Current
0.92A
Wattage/m
22W
Voltage
DC:24V
Technical Data
Beam angle
120°
Luminous efficiency (lm/W)
95.45 lm/W
Light color
Natural White
Luminous flux/m
2100 lm
Color Temperature
4000K
Color Rendering Index CRI
>90
Body Details
Material
PCB
Capabilities
IP Rating
IP20

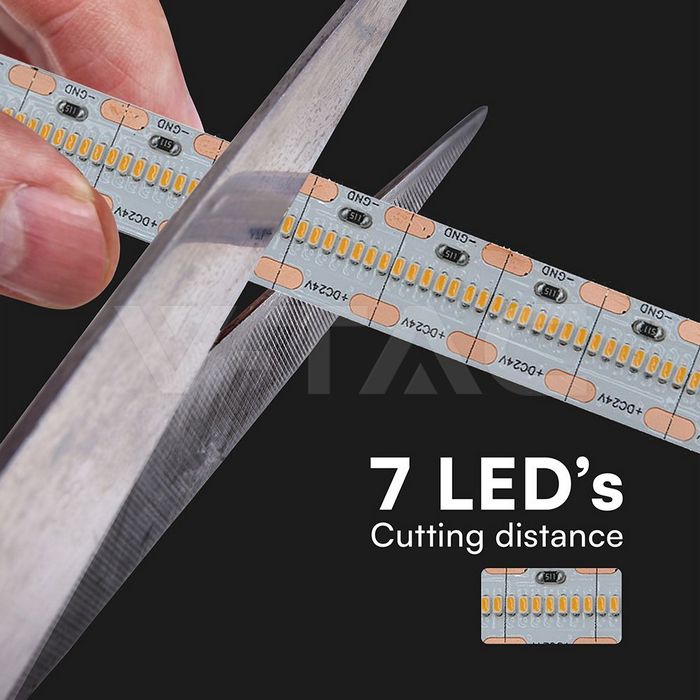

Cut Points
Cut only on the given cut line between the copper dots.
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Dimensions

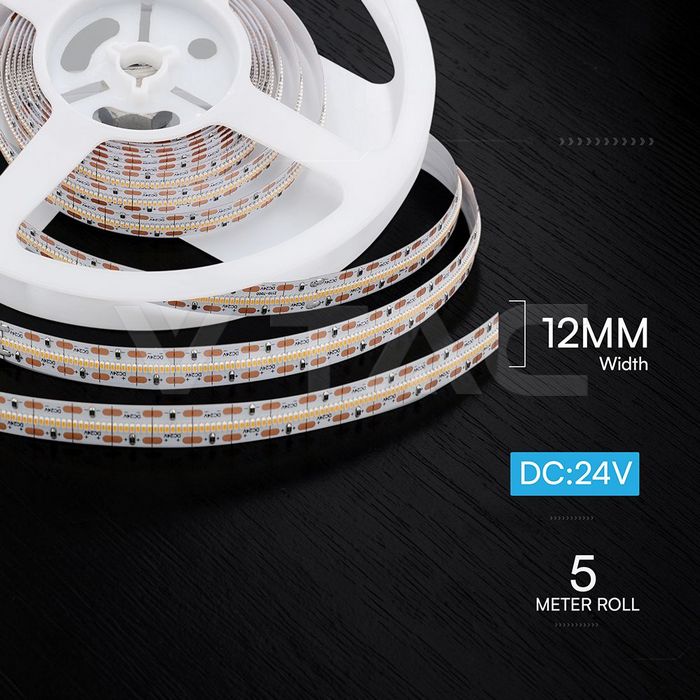

Width
12 mm
Product Data
Order code
212603
Product code
VT-2110
Items per pack
1 - 5m.
Item Weight
0.04
Item Volume
0.000166
Items per box
400
EAN Code
3800170261389
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
F
Additional
Release Date
26.06.26
Manufacturer
V-TAC
Warranty
2 Years
Energy Class Graphics
Energy Class
