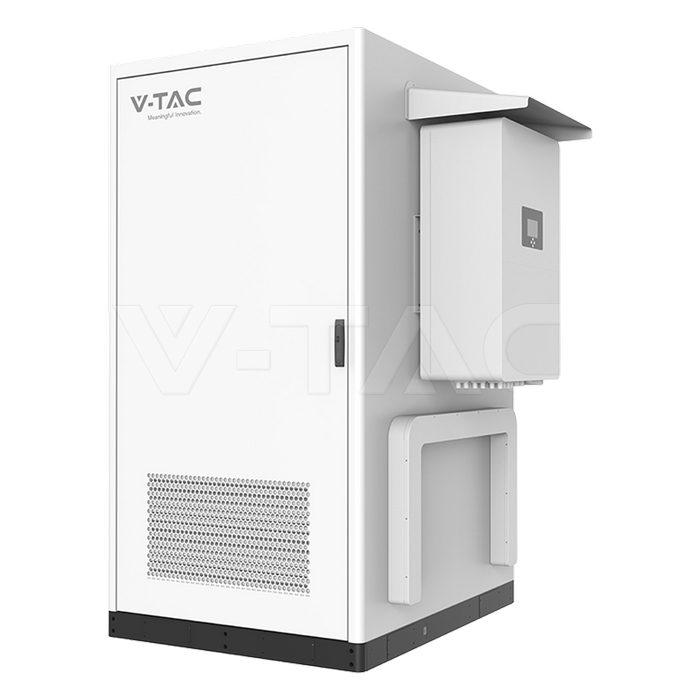

261kWh HV LiFePO4 Energy Storage System Liquid Cooling Oliter IP65 + 125kW Hybrid Solar Inverter Three Phase Deye

SKU: 12813 | VT:
12676n
12676n-2
12676n-3
12676n-4
12676n-5
12676n-6
12676n-7
12676n-8
12738
12738-2
12738-3
12738-4
12738-5

Set includes:

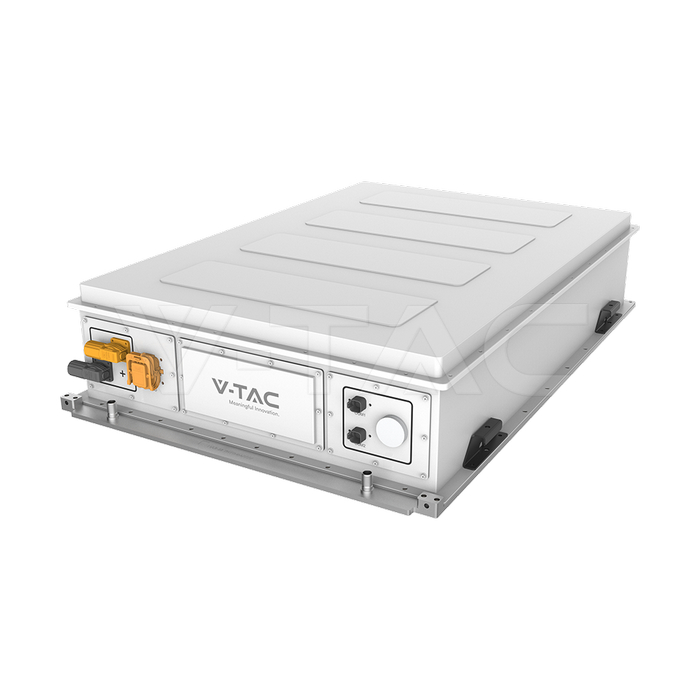

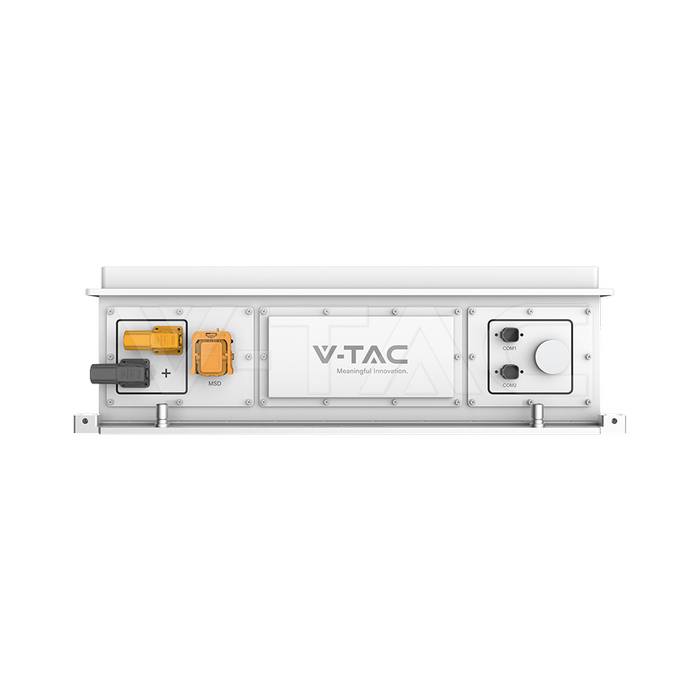

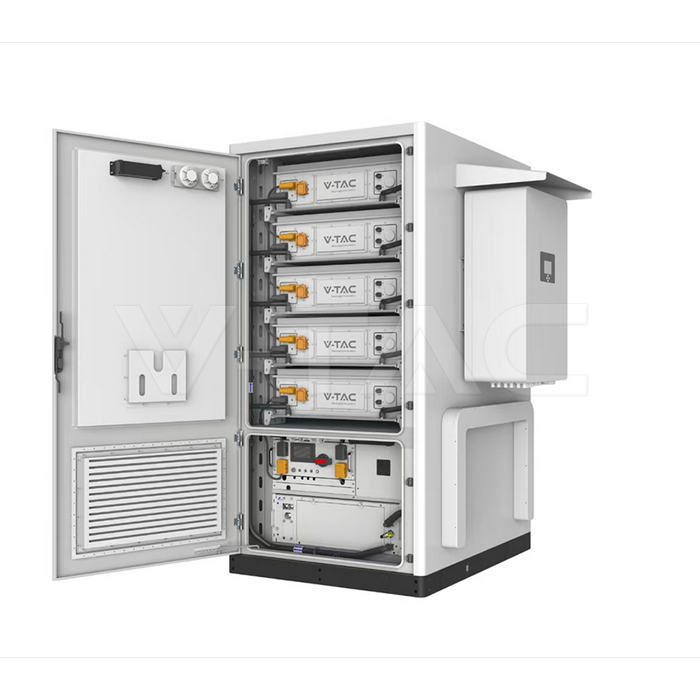

  • 5 pcs - 52.249kWh LiFePO4 Battery SKU:12676;

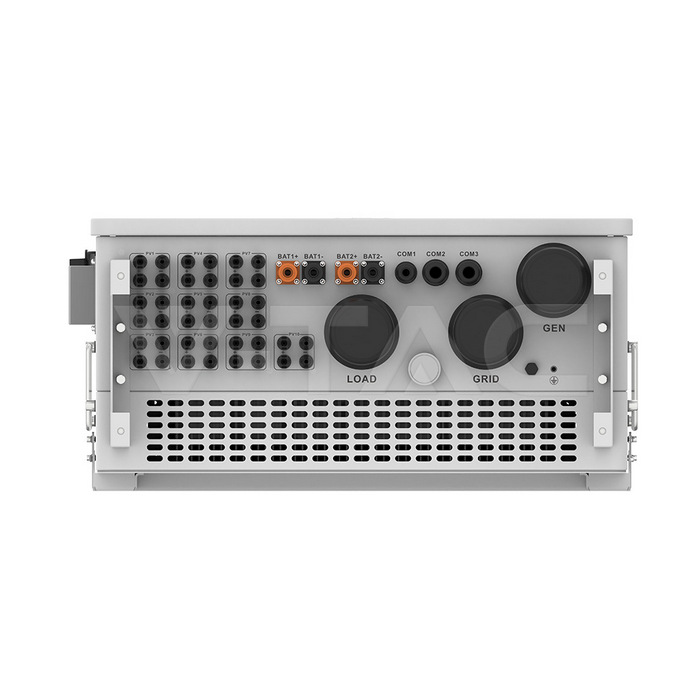

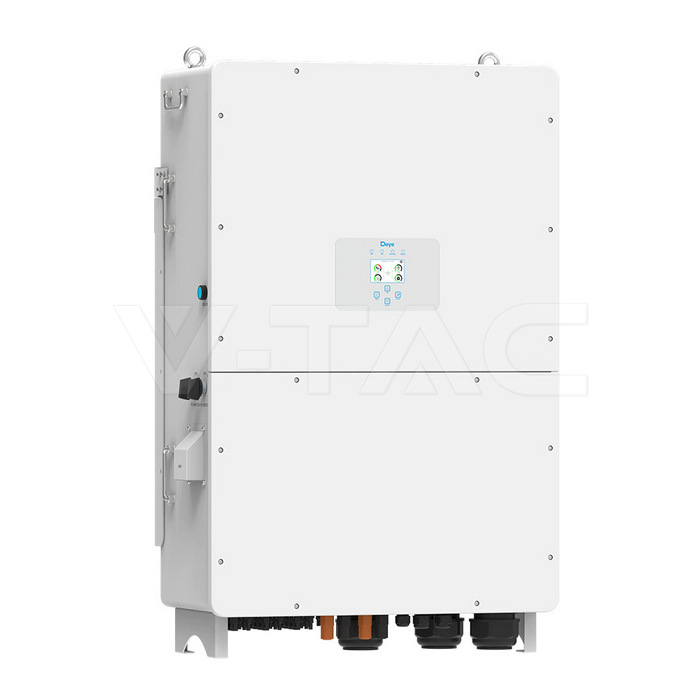

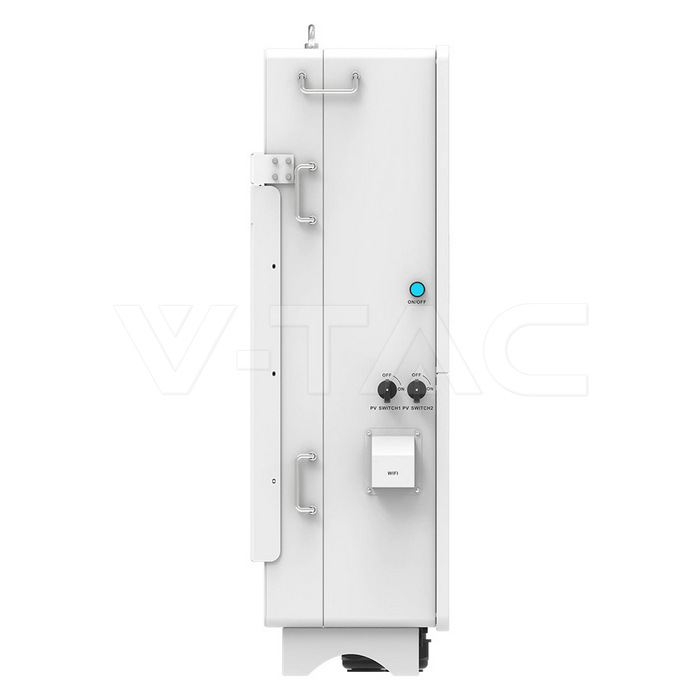

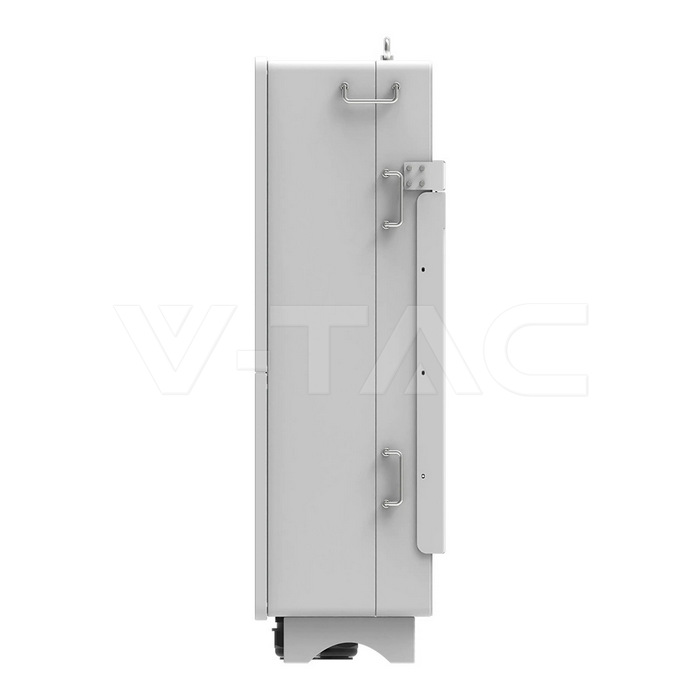

  • 1 pc - 125kW Hybrid Solar Inverter Three Phase SKU:12738;

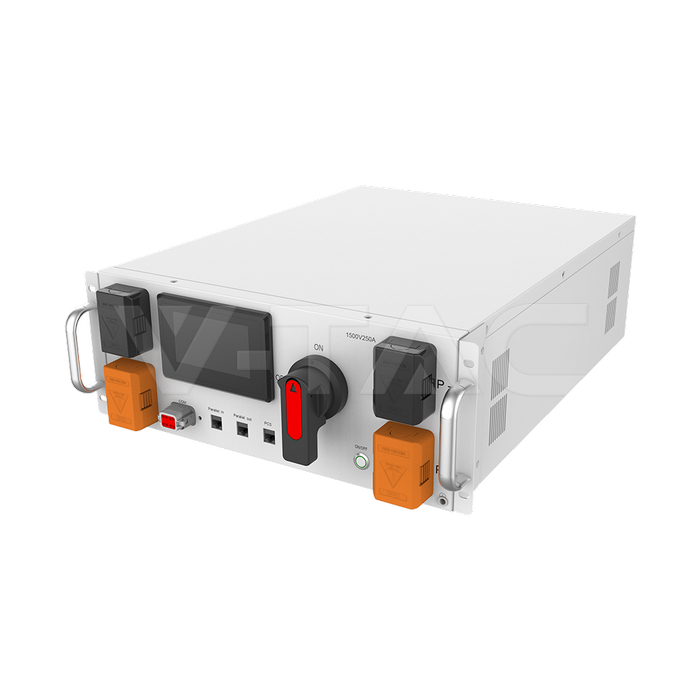

  • 1 pc - High Voltage Battery Cluster Control Box;

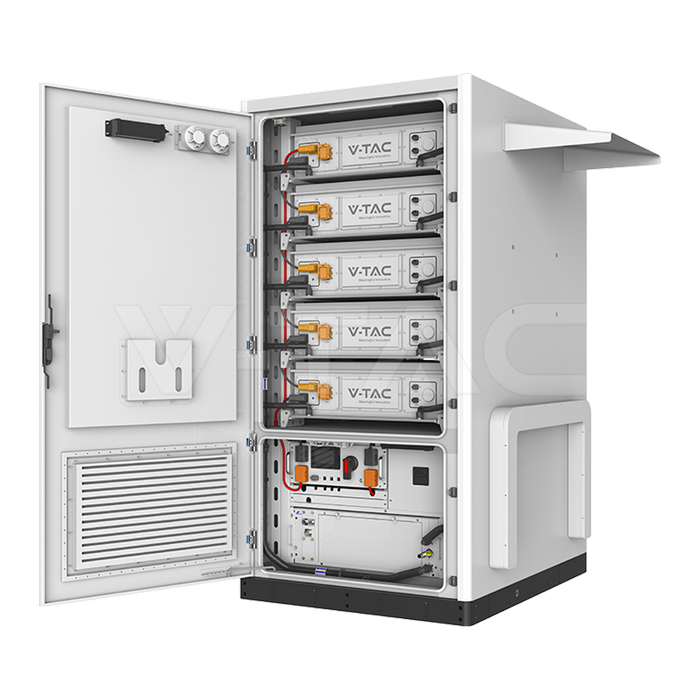

  • 1 pc - Rack for Battery Set;
Downloads
Manual
|
IEC 62619
Technical Specifications
|
Specifications
Electrical Data
Current
  • Recommend Charge/Discharge Current: 100A;
  • Max. Charge/Discharge Current: 157A;
Wattage
261kWh (52.249 kWh x 5)
Voltage
  • System Nominal Voltage:832V;
  • System Operating Voltage: 728-949V;
Capabilities
Cells Chemistry
LiFePO4
Battery Capacity
Module: 314Ah (LiFePO4)
Working conditions
-20 ~ 55°C
Dimensions
Size
1600 x 1400 x 2105 mm
Product Data
Order code
12813
Item Weight
  • Inverter: 161.7 kg;
  • Battery Set: ~2700 kg
Additional
Release Date
22.07.26
Manufacturer
V-TAC
Warranty
10 years
Additional information
For detailed information for the Inverter check SKU12738.
