14kW Hybrid Solar Inverter Three Phase Low Voltage 10yrs Warranty

SKU: 12781 | VT: SUN-14K-SG05LP3-EU-SM2

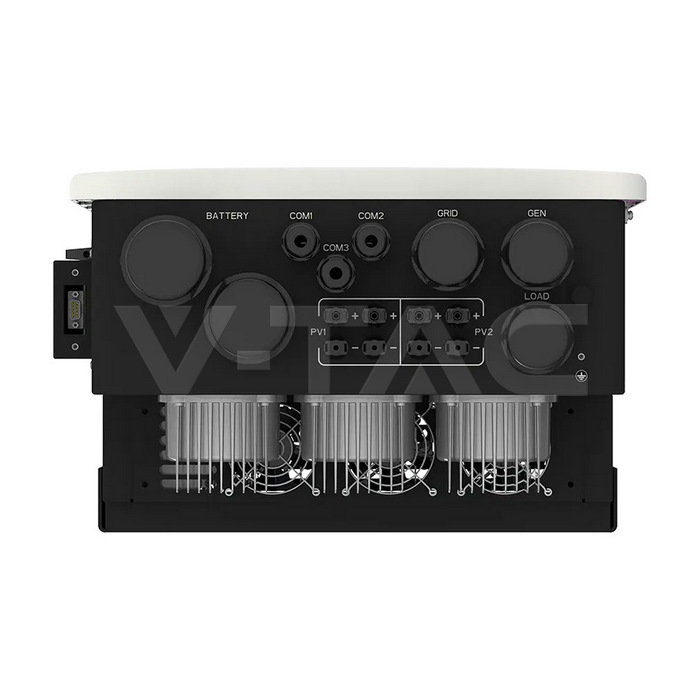

12781-2

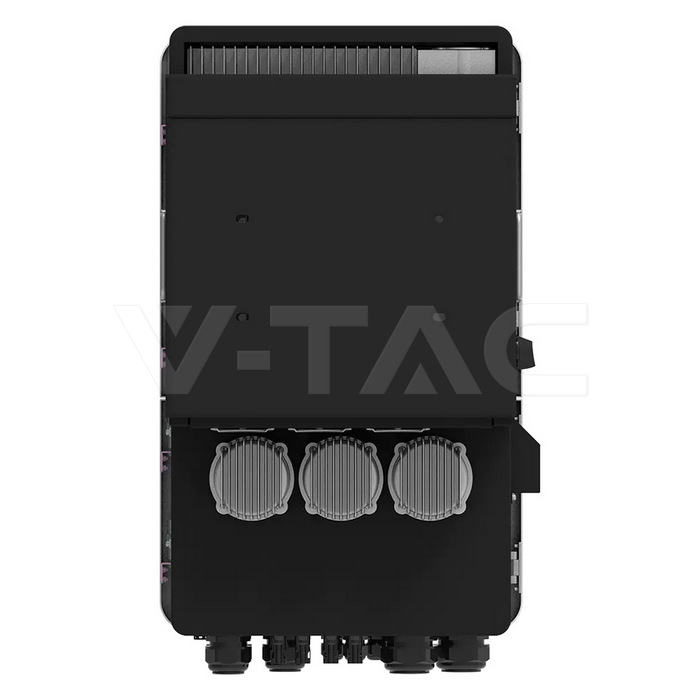

12781-3

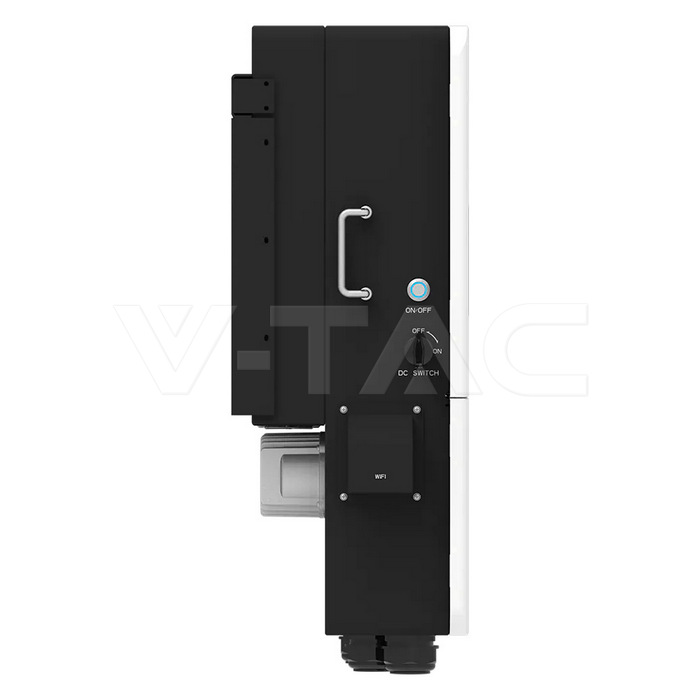

12781-4

Downloads
Manual
VDE4105
CEI 0-21
|||
EN 50549
Technical Specifications
EMC License
LVD License
RED
Specifications
General Information
Electrical Data
Current
  • Max. Operating PV Input Current (A): 36+36;
  • Max. Input Short-Circuit Current (A): 54+54;
  • Rated AC Input/Output Current (A): 21.3/20.3;
  • Max. AC Input/Output Current (A): 23.4/22.4
  • Max. Continuous AC Passthrough: 70A;
Wattage
  • Max. PV Input Power (W): 22400;
  • Max. PV Access Power (W): 28000;
  • Rated AC Input/Output Active Power (W): 14000;
  • Max. AC Input/Output Apparent Power (VA): 15400;
  • Peak Power (off-grid) (W): 2 times of rated power, 10s
Phase
Three Phase
Voltage
  • Max. PV Input Voltage: 800V;
  • MPPT Range: 160-650V;
  • Rated PV Input Voltage: 550V;
  • Start-up Voltage: 160V;
Frequency
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Power Factor
0.8 leading to 0.8 lagging
Capabilities
IP Rating
IP65
Working conditions
-40 to +60℃, >45℃ Derating
Dimensions
Size
456 x 750 x 268.5 mm (Excluding Connectors and Brackets)
Product Data
Order code
12781
Product code
SUN-14K-SG05LP3-EU-SM2
Item Weight
51.9 kg
Items per box
1
Additional
Release Date
27.08.26
Brand
Deye
Additional information
Noise (dB) <60
Warranty
10 years
