10W LED Lamp Sensor PIR CREE Chip 4000K White Body

SKU: 234216 | VT: VT-81005
234216-2
234216-3
234216-4
234216-5
234216-6
234216-7

Downloads
Product Information Sheet
Manual
PPWR Declaration of Conformity
Specifications
General Information

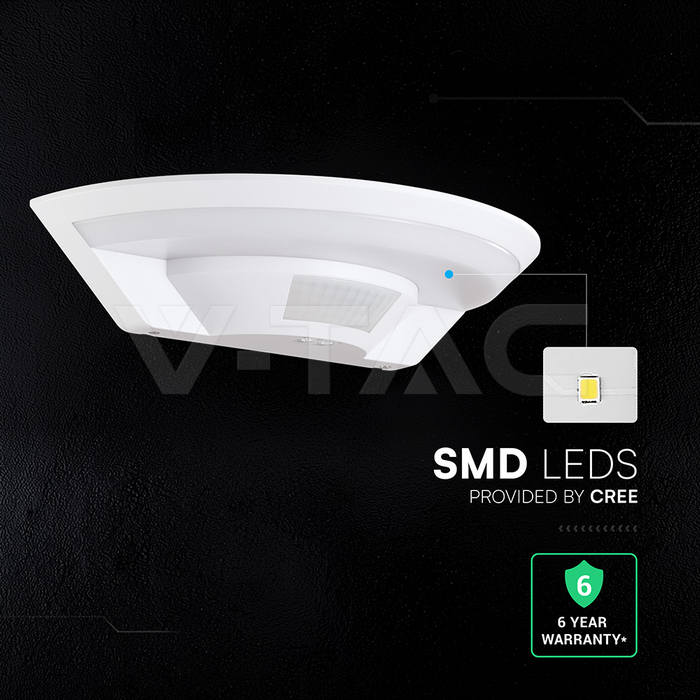

LED Chip
SMD-CREE Chip
Lifespan
25000 Hours
Electrical Data
Wattage
10W
Voltage
AC:220-240V
Frequency
50/60Hz
Technical Data
Luminous efficiency (lm/W)
106 lm/W

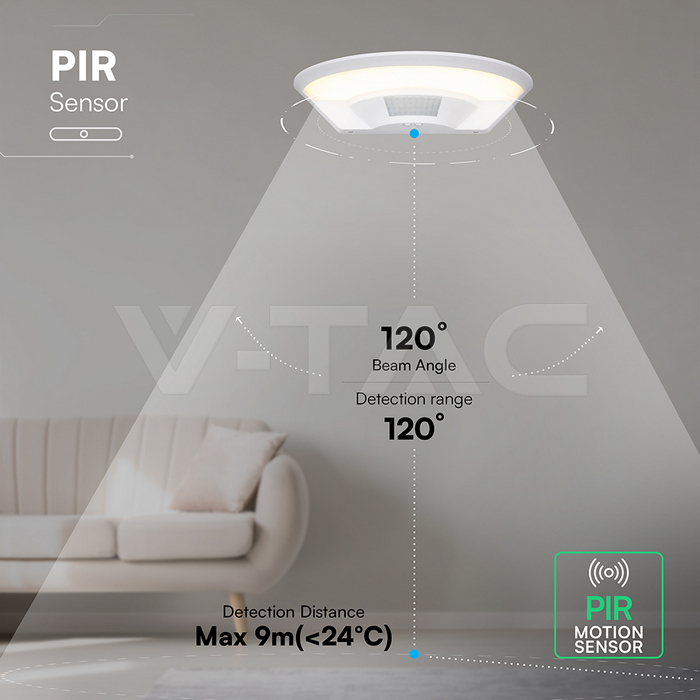

Beam angle
120°
Light color
Natural White
Color Temperature
4000K
Luminous flux (lm)
1060 lm
Color Rendering Index CRI
>80
Body Details
Body color
White
Material
PC
Capabilities

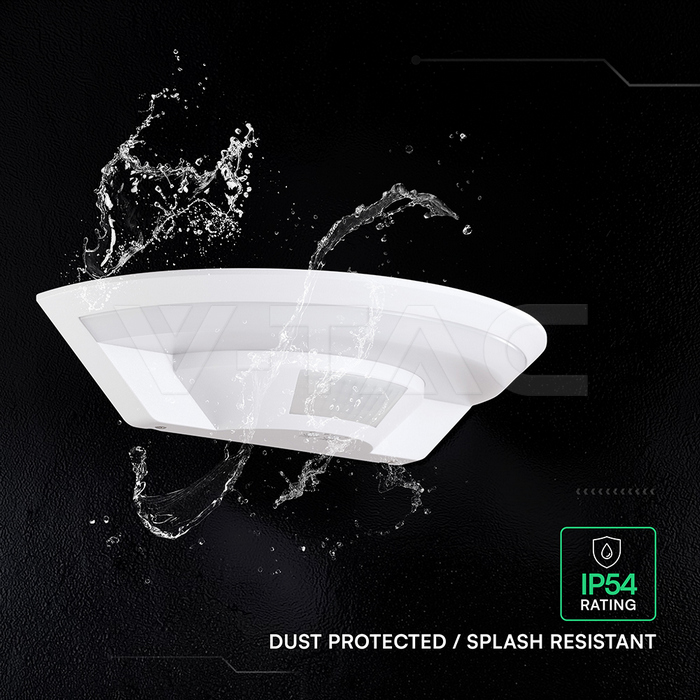

IP Rating
IP54
IK Rating
IK10
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>10000
Working conditions
-20°C to +40°C
Dimensions

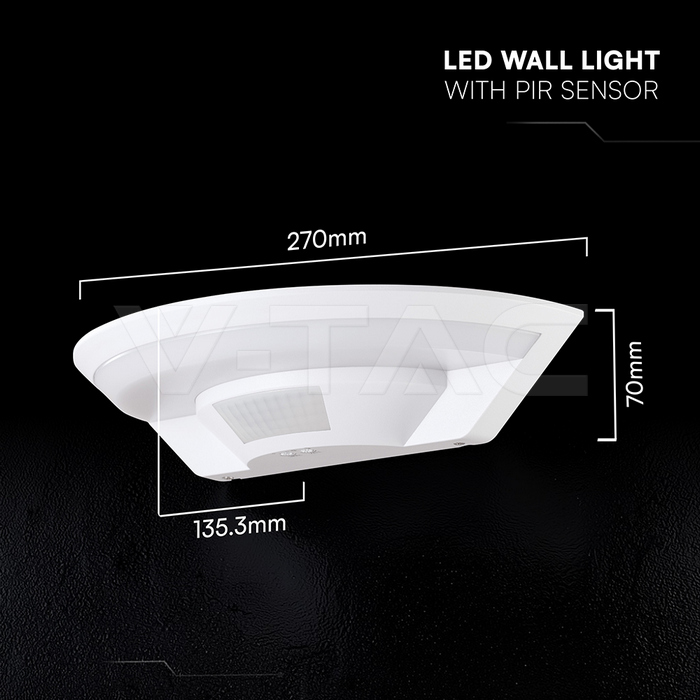

Size
270x135.3x70 mm
Product Data
Order code
234216
Product code
VT-81005
Items per pack
1
Item Weight
0.6
Item Volume
0.003433
Items per box
20
EAN Code
3800170263567
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
E
Additional
Release Date
06.08.26
Manufacturer
V-TAC
Warranty
6 Years

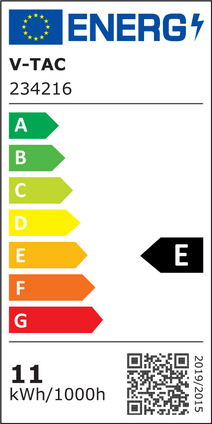

Energy Class Graphics
Energy Class
