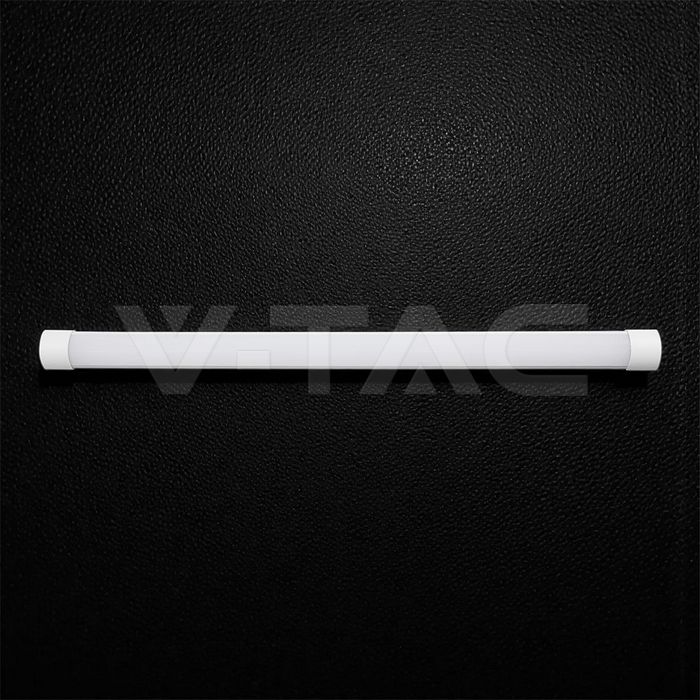

20W LED Grill Fitting 60cm 3in1 120lm/W

SKU: 24218 | VT: VT-8320CCT
24218-2
24218-3
24218-4
24218-5
24218-6
24218-7
24218-8

Downloads
Product Information Sheet
Manual
PPWR Declaration of Conformity
Specifications
General Information

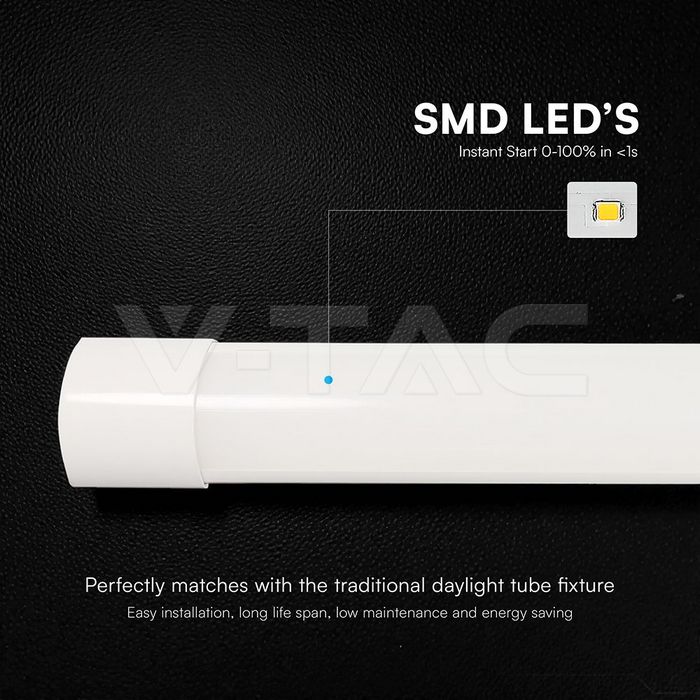

LED Chip
SMD
Lifespan
25 000 hrs
Electrical Data
Wattage
20W
Voltage
AC:220-240V
Frequency
50Hz
Power Factor
>0.7
Technical Data
Luminous efficiency (lm/W)
120 lm/W

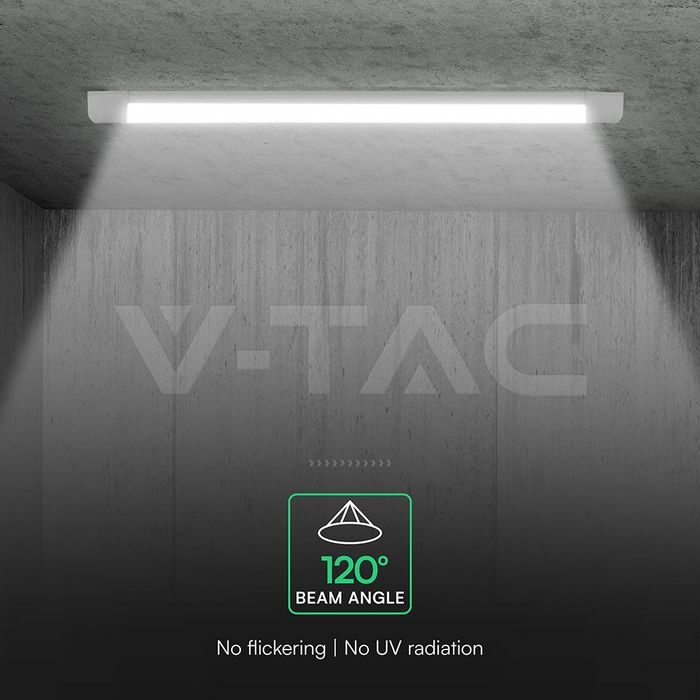

Beam angle
120°

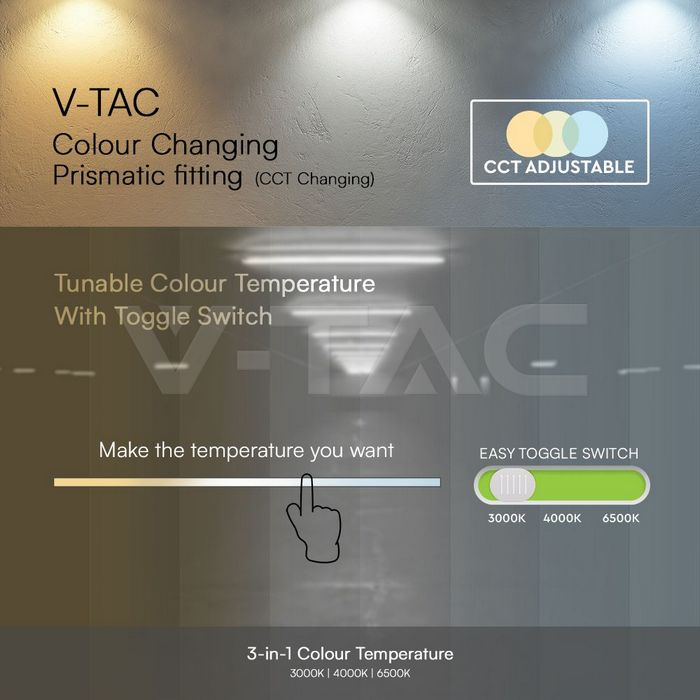

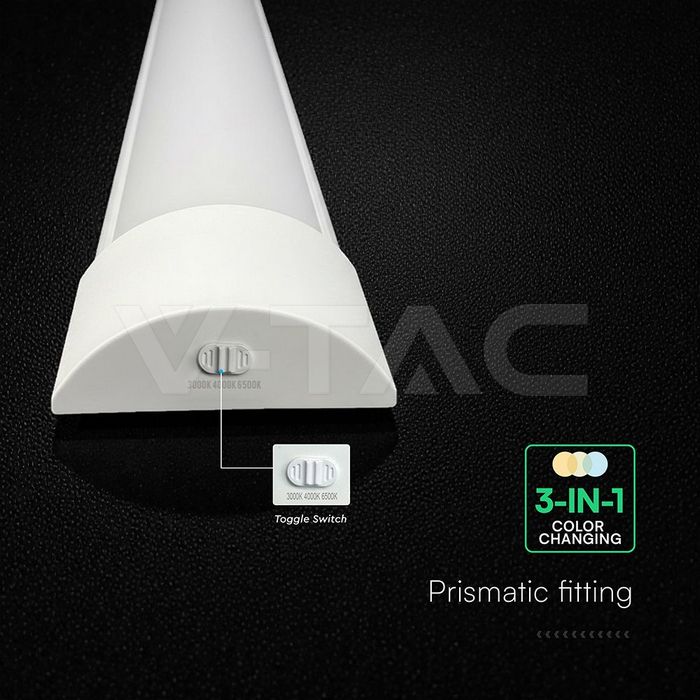

Light color
3 in 1
Luminous flux (lm)
2400 lm
Color Rendering Index CRI
>80
Body Details
Body color
White
Material
Plastic
Capabilities
IP Rating
IP20
Starting Time 100% ON
0.001 sec (instant on)
On/Off cycles
>15000
Working conditions
-20°C to +40°C
Dimensions
Size

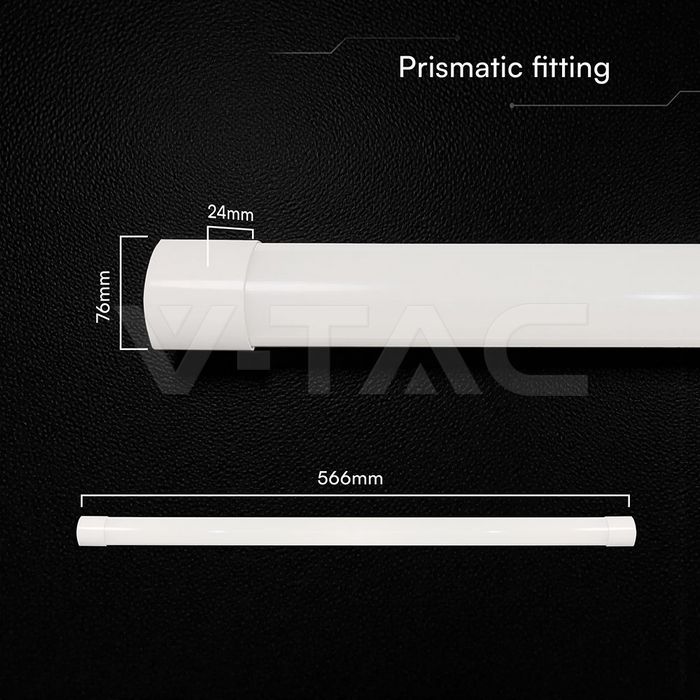

566x76x24mm
Product Data
Order code
24218
Product code
VT-8320CCT
Items per pack
1
Item Weight
0.23
Item Volume
0.001783
Items per box
30
EAN Code
3800170258297
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
E
Additional
Release Date
12.03.26
Manufacturer
V-TAC
Warranty
3 Years
Energy Class Graphics
Energy Class
