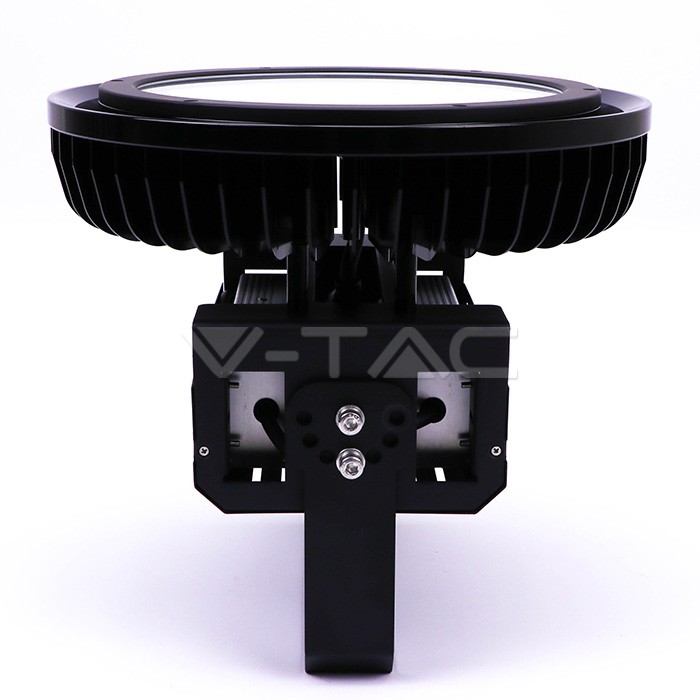

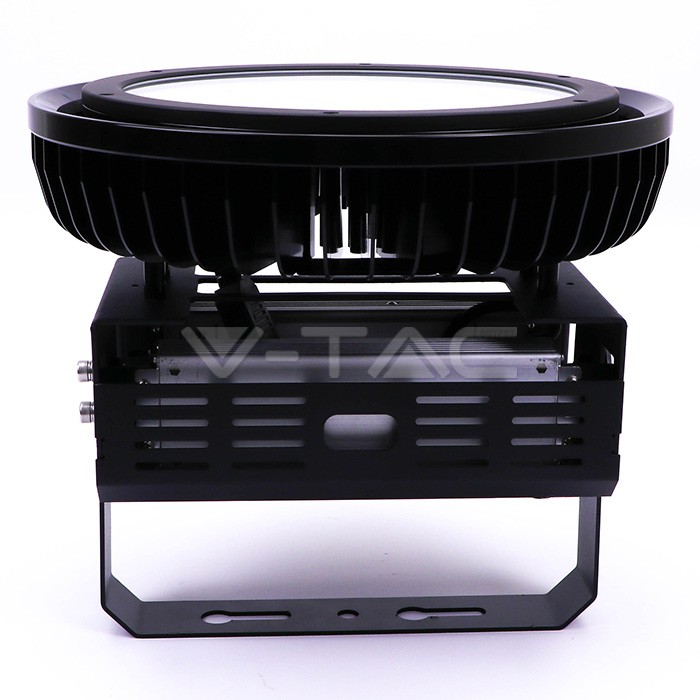

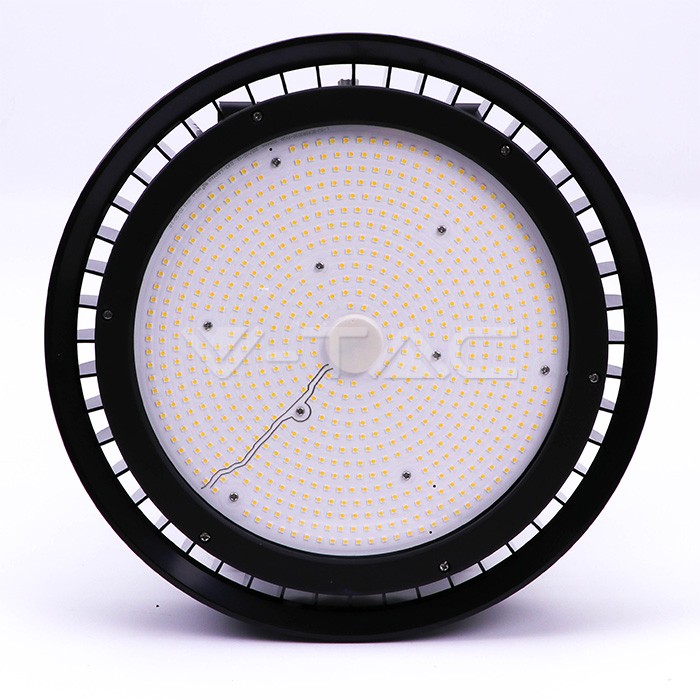

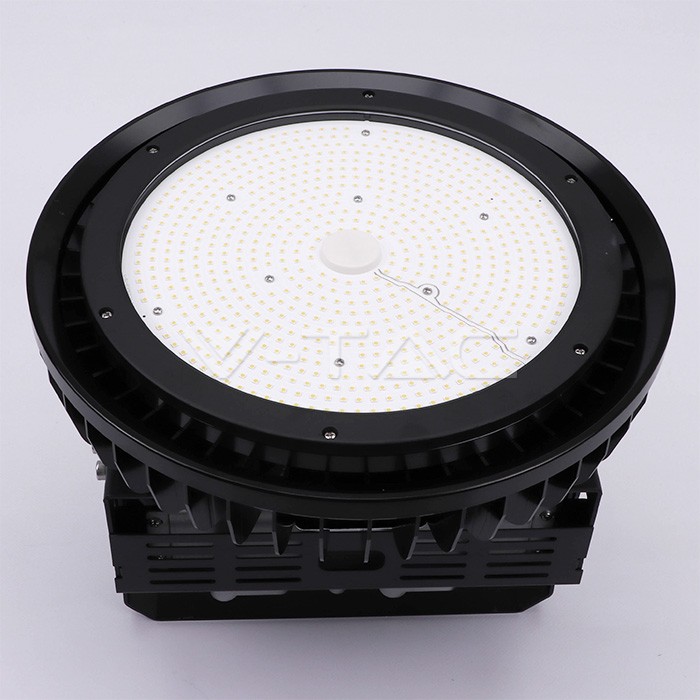

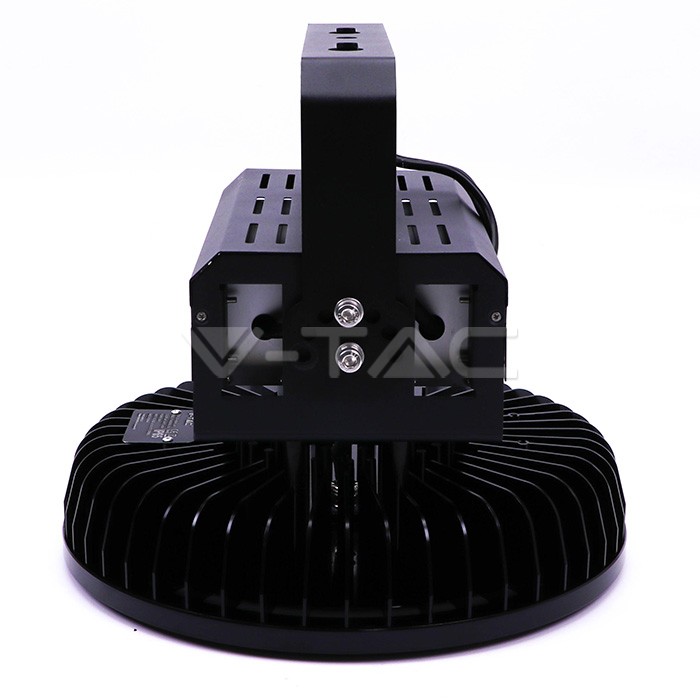

LED Highbay SAMSUNG Chip 500W 120° Meanwell Driver Dimmable Black Body 4000K

SKU: 509 | VT: VT-9-500
509-2
509-3
509-4
509-5
509-6

Downloads
Manual
LVD Report
RoHS Report
ЕМС Report
EMC License
LVD License
RoHS License
IES File
Product Information Sheet
Specifications
General Information
LED Chip
SMD SAMSUNG Chip
Lifespan
50 000 hrs
Electrical Data
Wattage
500W
Voltage
AC: 100-277V
Frequency
50Hz
Power Factor
>0.9
Technical Data
Luminous efficiency (lm/W)
120 lm/W
Light color
Natural White
Color Temperature
4000K
Luminous flux (lm)
60000 lm
Color Rendering Index CRI
>80
Beam angle
120°
Body Details
Body color
Black
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
19098.5 Cd Max.
On/Off cycles
30000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Dimmable
Yes
IK Rating
IK08
IP Rating
IP65
Dimensions
Diameter
360 mm
Product Data
Order code
509
Product code
VT-9-500
Items per pack
1
Item Weight
11,391
Item Volume
0,0324
Items per box
1
EAN Code
3800157645058
Certificates & Standards
Energy efficiency class
D
Certification
CE, EMC, ROHS
Additional
Warranty
5 years
Dimensions Graphics
Dimensions
Energy Class Graphics
Energy Class
Manufacturer
V-TAC
