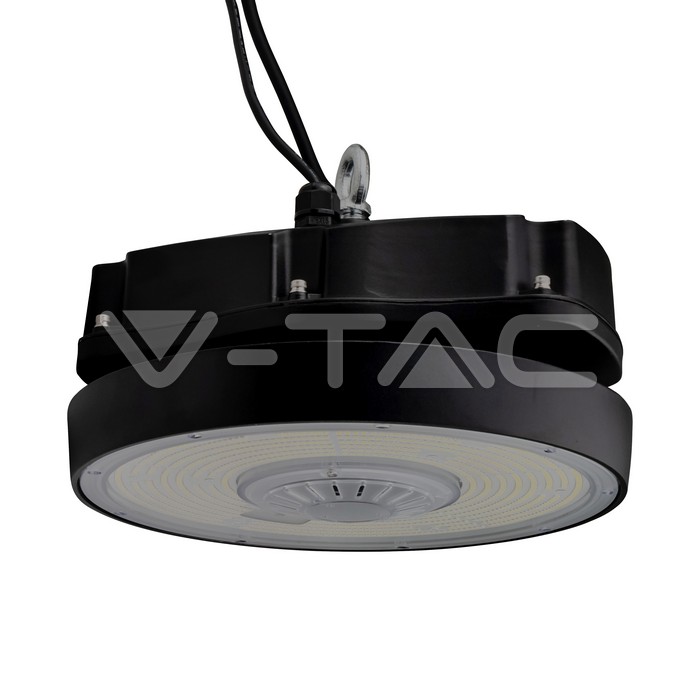

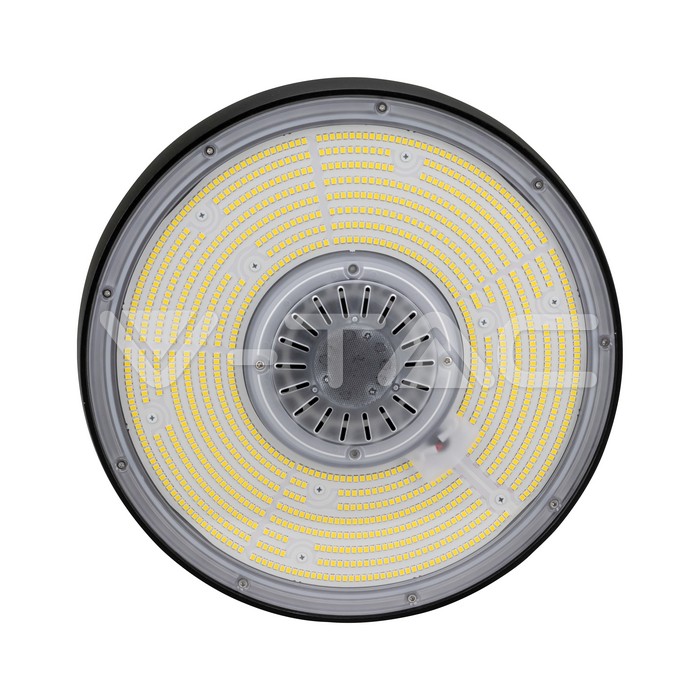

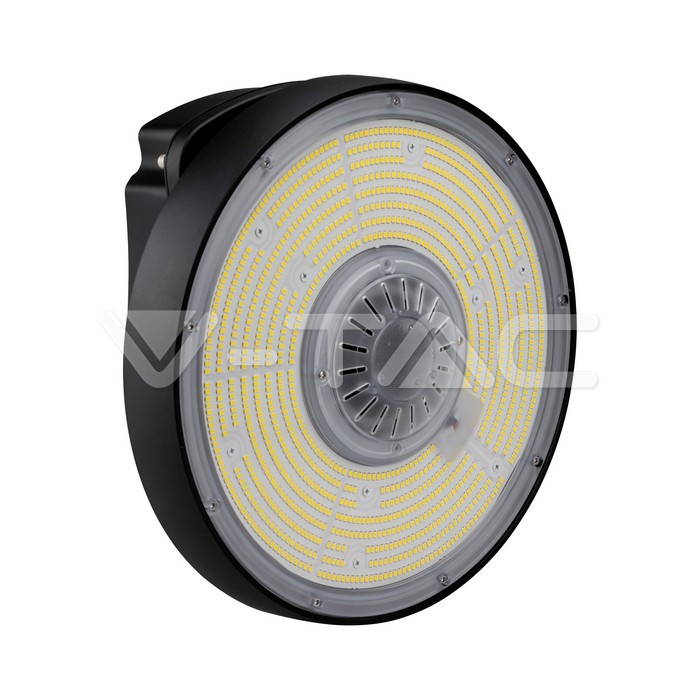

200W LED Highbay MEANWELL Driver Dimmable 5 yrs Warranty 6400K 185 lm/W

SKU: 7657 | VT: VT-9219
7656-1
7656-1a
7656-1b
7656-1c
7656-2
7656-3
7656-4
7656-5
7656-6
7656-7
7656-8

Product benefits

  • Powerful LED light source with a unique design
  • Extensive Options can replace all types of Standard MH High bays
  • Aluminium Diffuser
  • Shatter Proof Perspex Lens
  • High Thermal Conductivity, Low Luminous Decay, Pure Colours & No Heavy Shade
  • The unique design of Radiator fuses with the Lamp Box perfectly hence diffuses the heat conduction efficiently which reduces the temperature of inside lamp & ensures the LED long life span
  • No Flickering
  • No UV Radiation

Applications

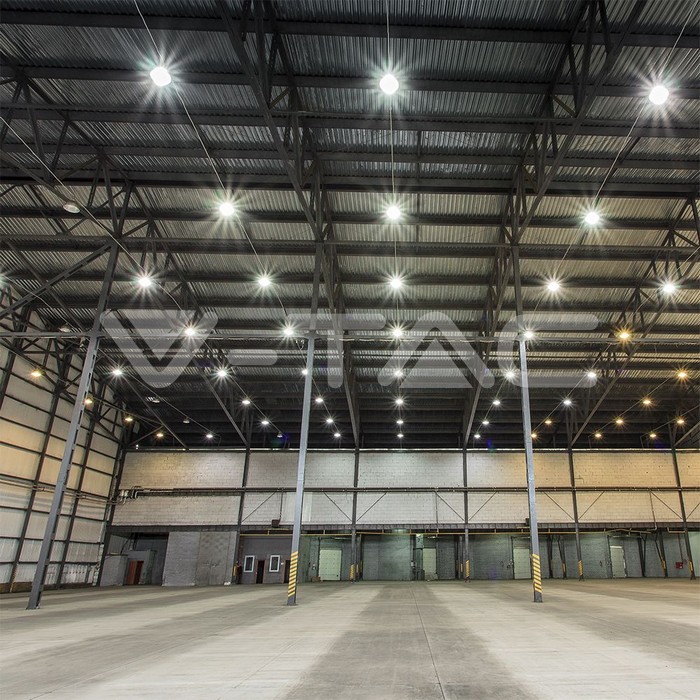

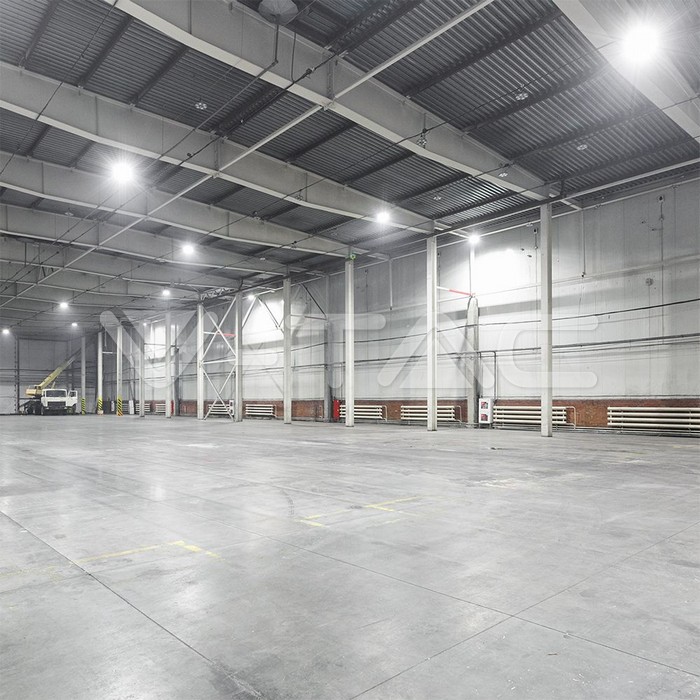

  • Perfect for Industrial Usage, Warehouse & Supermarkets, Workshop’s, Factories, Warehouses, Highway, Тoll Stations, Gas Stations, Malls, Exhibition Halls, Stadium’s & other vast areas
Downloads
Product Information Sheet
Manual
Declaration of Conformity
EMC License
LVD License
RoHS License
Specifications
General Information

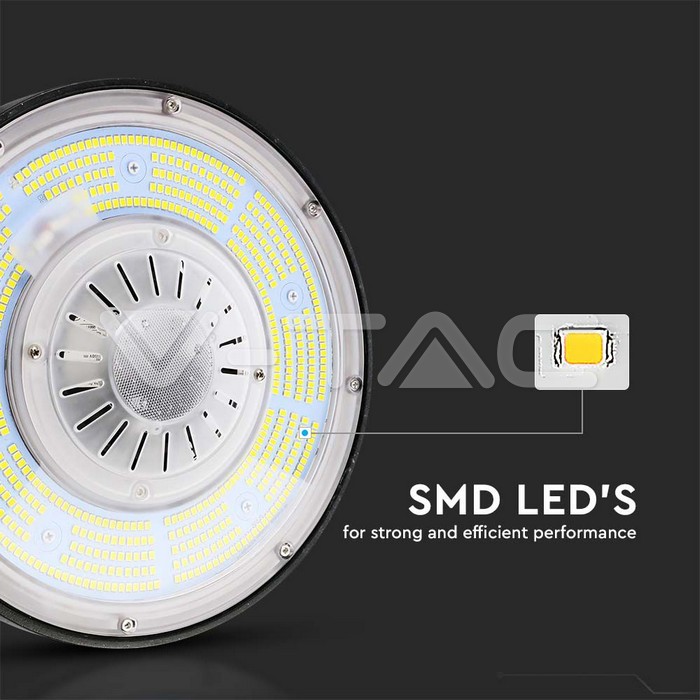

LED Chip
SMD
Lifespan
25,000 hrs
Electrical Data
Wattage
200W
Voltage
Power Factor
>0.9
Technical Data
Luminous efficiency (lm/W)
185 lm/W
Light color
White
Color Temperature
6500K
Luminous flux (lm)
37000 lm
Color Rendering Index CRI
>70

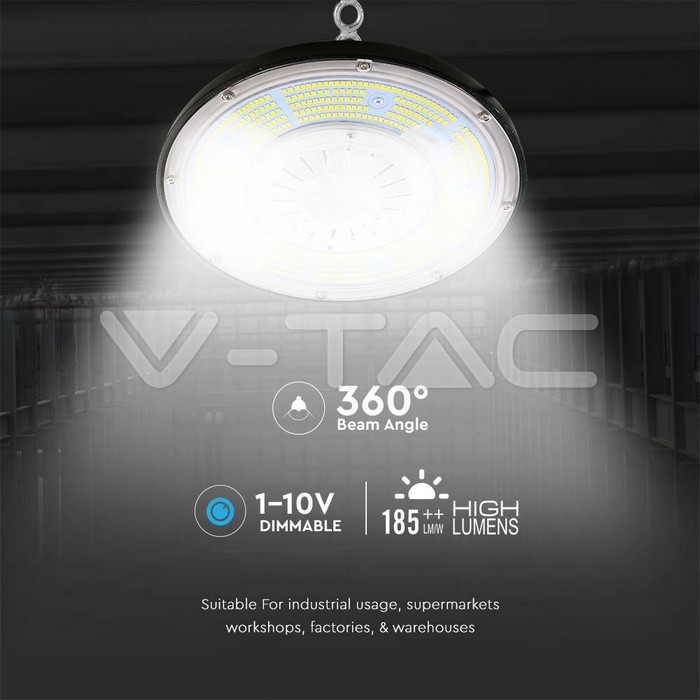

Beam angle
360°
Body Details
Material
Aluminium
Body color
Black
Capabilities

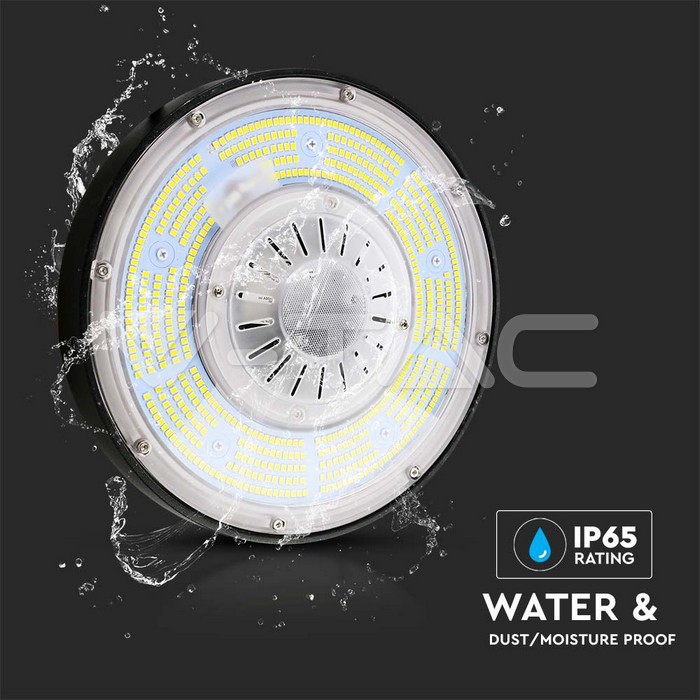

IP Rating
IP65
Dimmable
Yes
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>15000
Working conditions
-20°C to +45°C
Dimensions

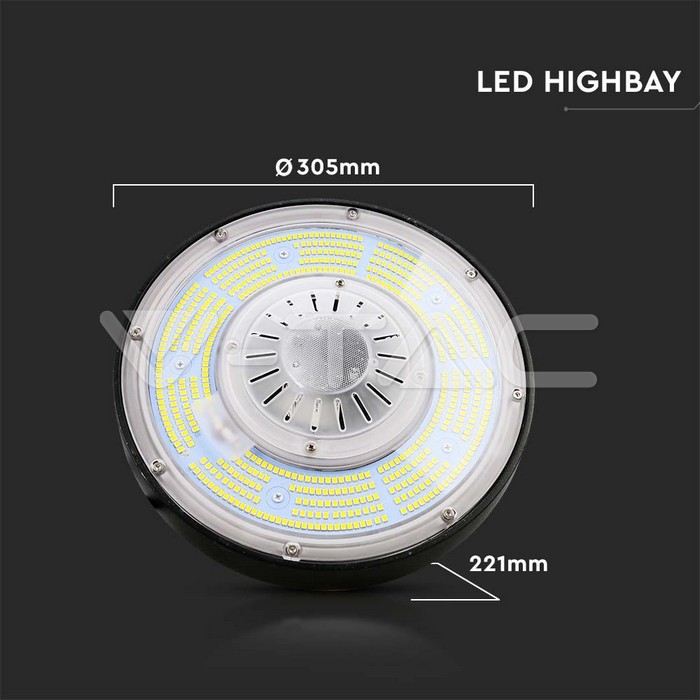

Size
305 x 221mm
Product Data
Order code
7657
Product code
VT-9219
Items per pack
1
Item Weight
4,58
Item Volume
0,01778
Items per box
1
EAN Code
3800157685696
Certificates & Standards
Energy efficiency class
B
Certification
CE, EMC, ROHS
Additional
Release Date
18.11.2022
Brand
V-TAC
Warranty
5 Years
Energy Class Graphics
Energy Class
