150W/200W/240W LED Highbay Sosen Driver CREE Chip 3in1 160lm/W

SKU: 242816 | VT: VT-9-157
242816-2
242816-3
242816-4
242816-5
242816-6
242816-7
242816-8

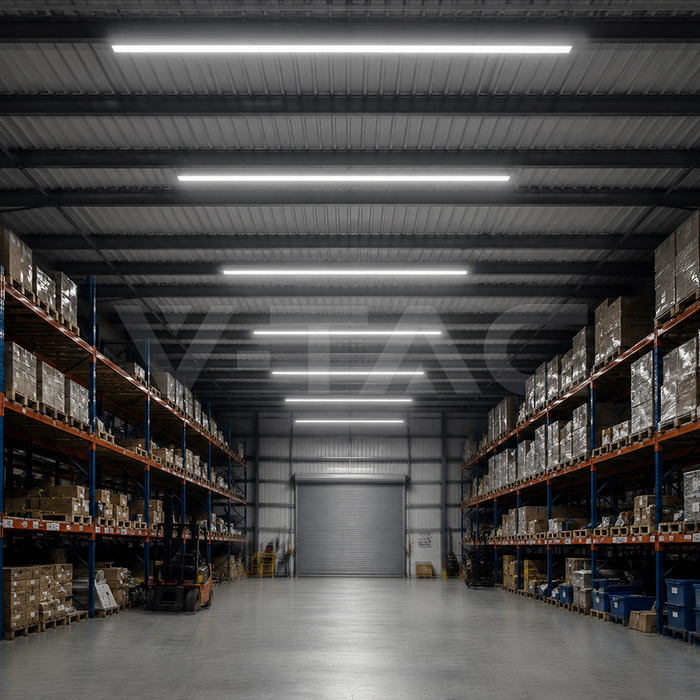

242816-9

Downloads
Product Information Sheet
Manual
PPWR Declaration of Conformity
Specifications
General Information
LED Chip

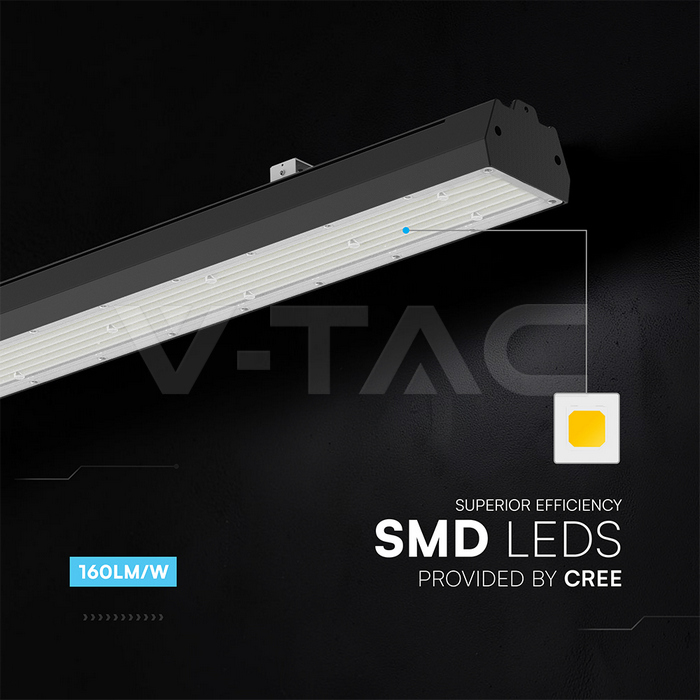

SMD-CREE Chip
Lifespan
50,000 Hours
Electrical Data
Wattage
240W
Voltage
AC:220-240V
Frequency
50/60Hz
Power Factor
>0.9
Technical Data
Beam angle

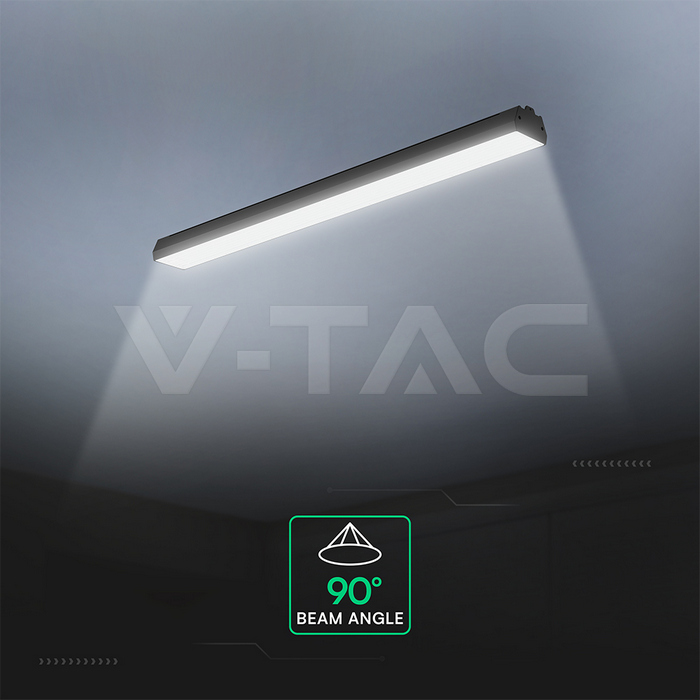

90°
Luminous efficiency (lm/W)
160 lm/W
Light color

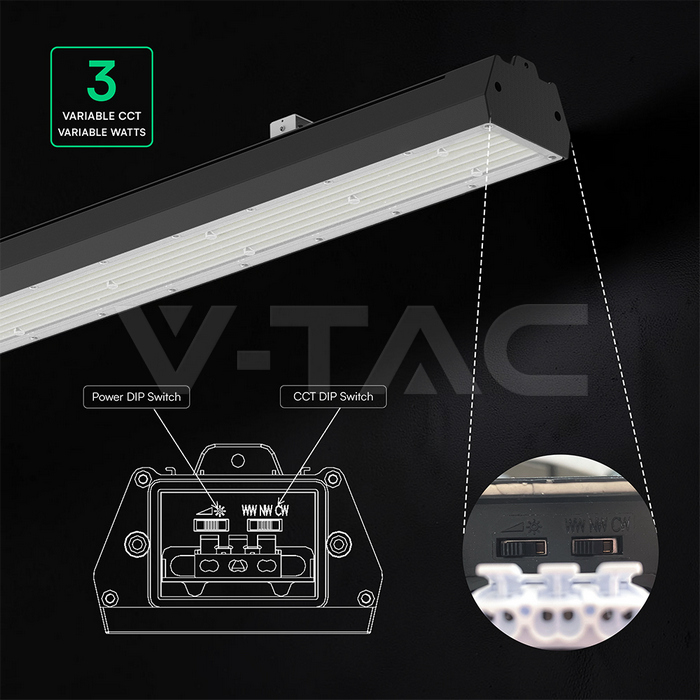

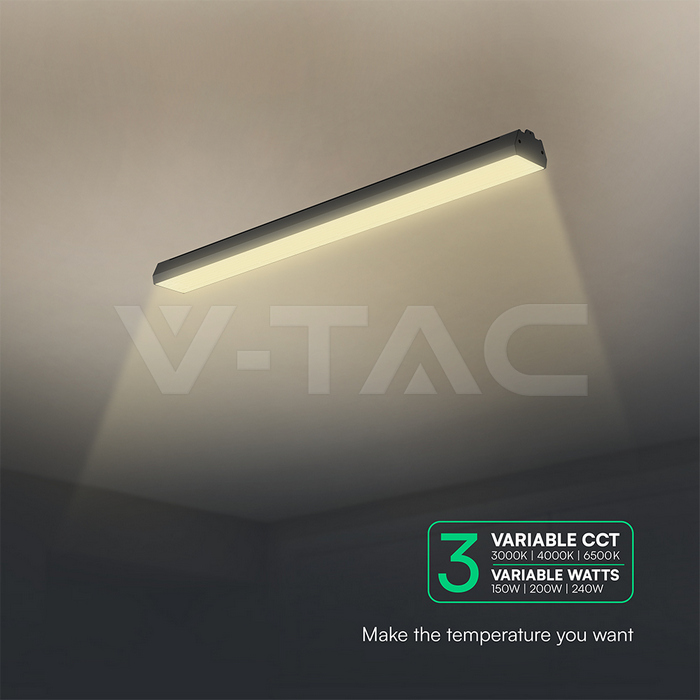

3 in 1
Luminous flux (lm)
32000 lm
Color Rendering Index CRI
>80
Body Details
Body color
Black
Material

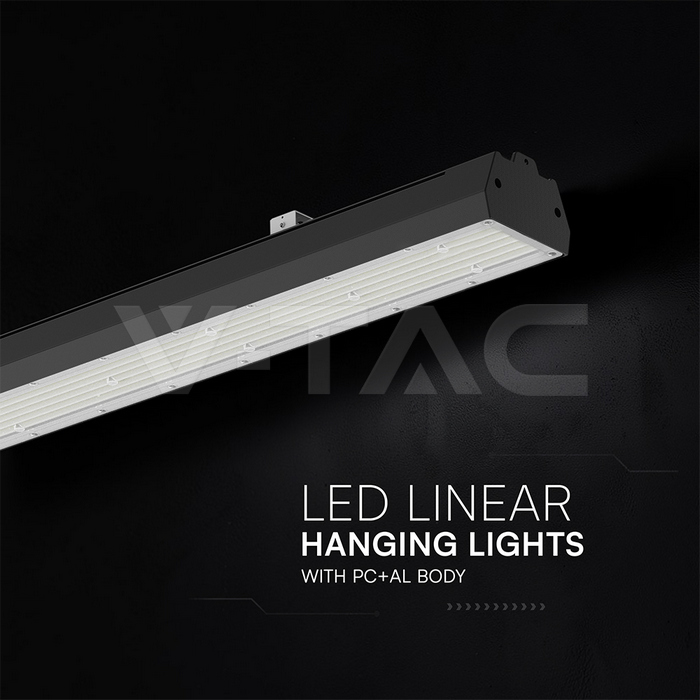

PC+AL
Capabilities
IP Rating
IP65
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Working conditions
-20°C to +40°C
Dimensions
Size

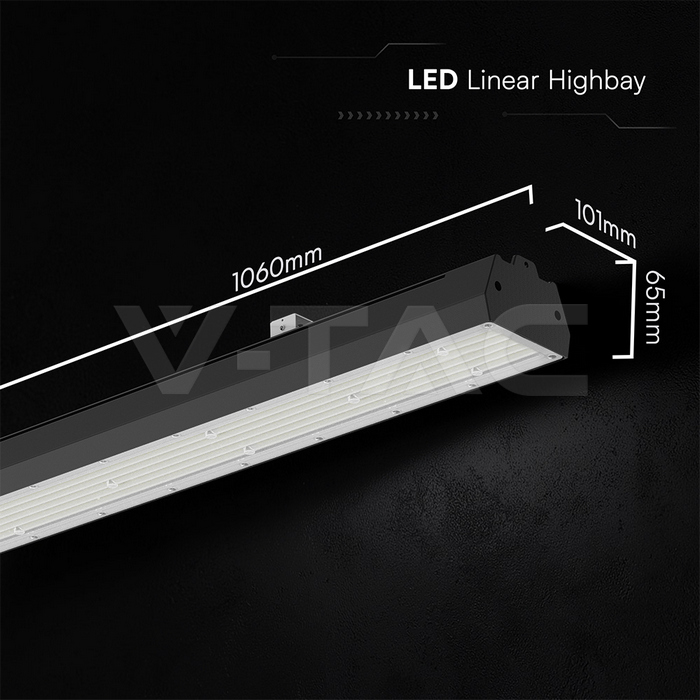

1060x101x65mm
Product Data
Order code
242816
Product code
VT-9-157
Items per pack
1
Item Weight
3.04
Item Volume
0.010781
Items per box
6
EAN Code
3800170259546
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
D
Additional
Release Date
26.08.26
Manufacturer
V-TAC
Warranty
6 Years
Energy Class Graphics
Energy Class
