100W LED UFO Highbay 4000K 160LM/W

SKU: 24075 | VT: VT-91102
24075-2
24075-3
24075-4
24075-5
24075-6
24075-7
24075-8

Downloads
Product Information Sheet
Manual
Declaration of Conformity
PPWR Declaration of Conformity
Specifications
General Information

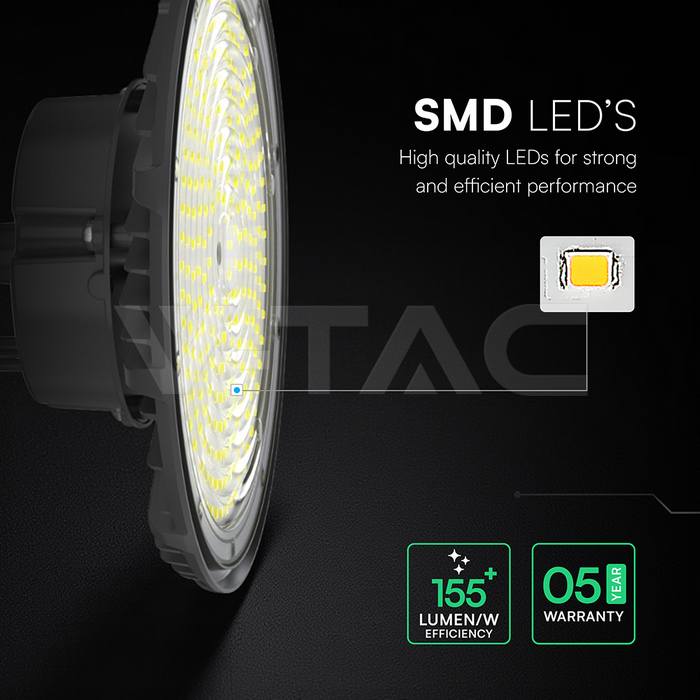

LED Chip
SMD
Lifespan
30,000 Hours
Electrical Data
Wattage
100W
Voltage
AC:220-240V
Frequency
50/60Hz
Power Factor
>0.9
Technical Data
Luminous efficiency (lm/W)
155 lm/W

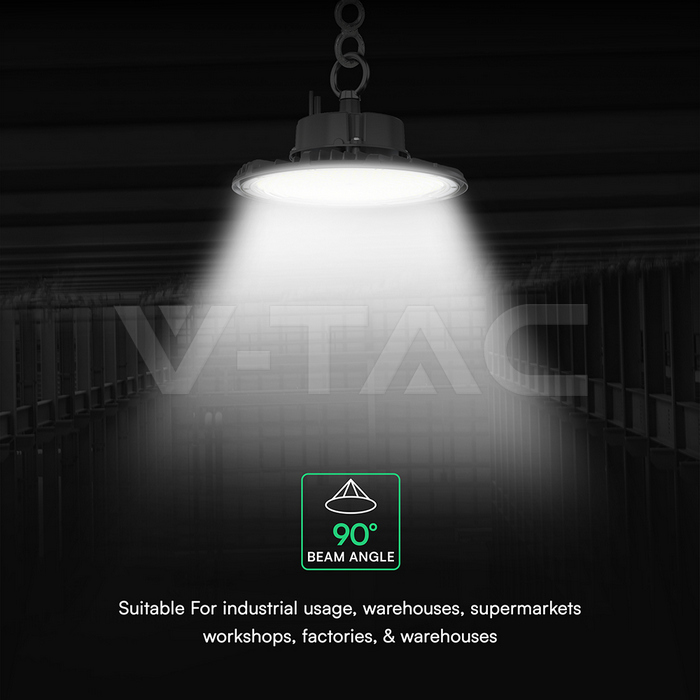

Beam angle
90°
Light color
Natural White
Color Temperature
4000K
Luminous flux (lm)
15500 lm
Color Rendering Index CRI
>70
Body Details
Body color
Black

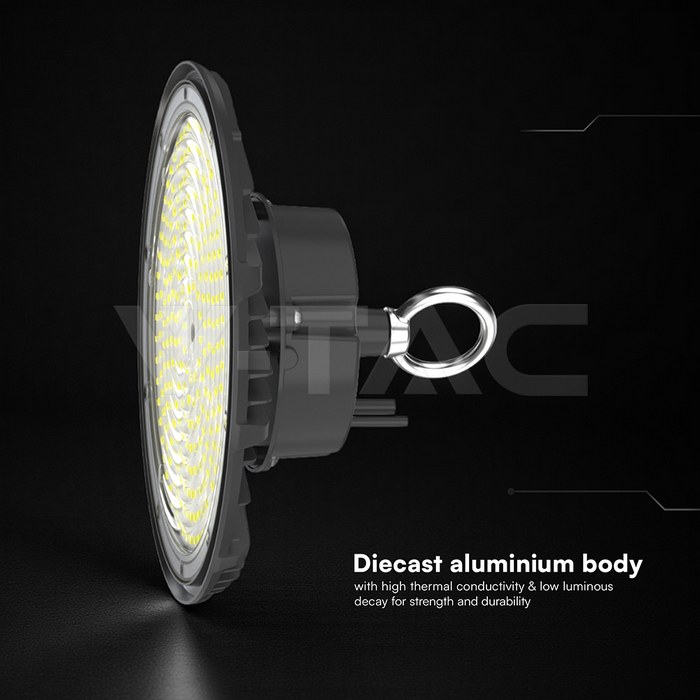

Material
Aluminium
Capabilities

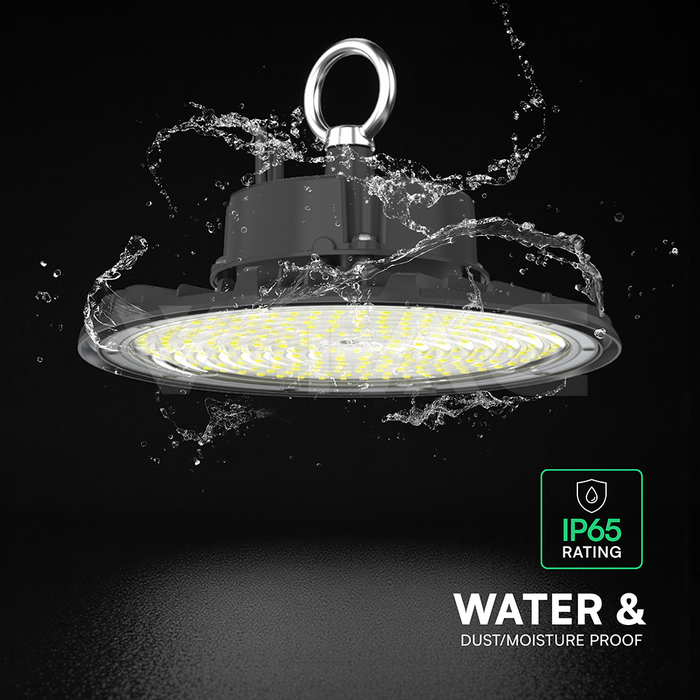

IP Rating
IP65
IK Rating
IK06
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>20000
Working conditions
-20°C to +40°C
Dimensions
Size

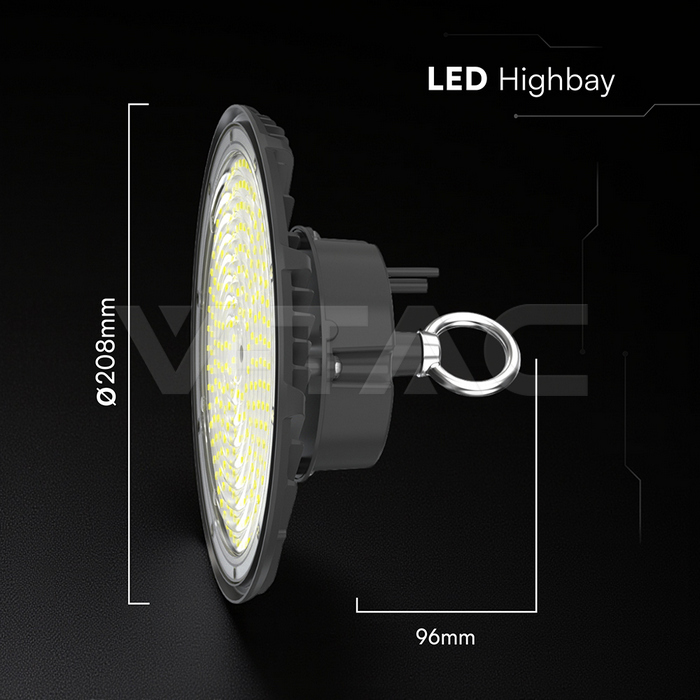

208x208x96mm
Product Data
Order code
24075
Product code
VT-91102
Items per pack
1
Item Weight
1.28
Item Volume
0.00581
Items per box
1
EAN Code
3800170253421
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
D
Additional
Release Date
18.12.25
Manufacturer
V-TAC
Warranty
5 Years
Energy Class Graphics
Energy Class
