LED Domelight CREE CHIP 40W Microwave Sensor 5in1 IP65

SKU: 24360 | VT: VT-8179

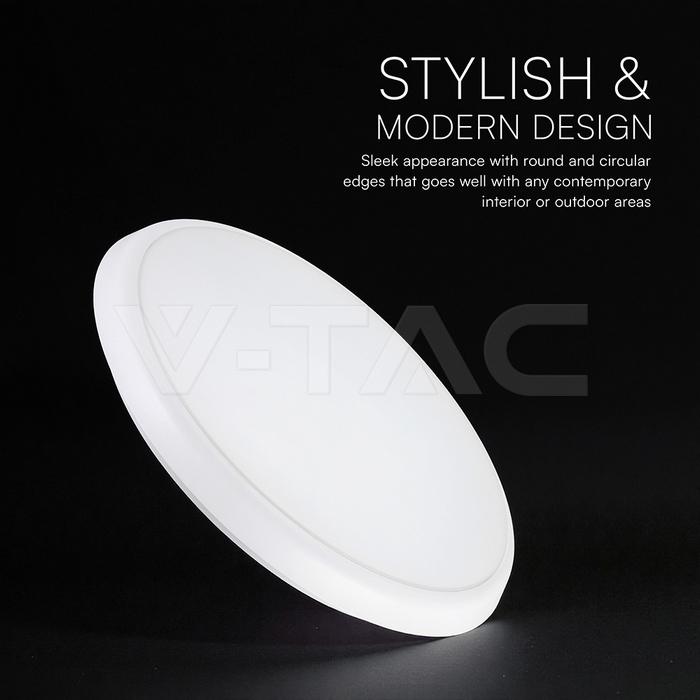

24360-2
24360-3
24360-4
24360-5
24360-6

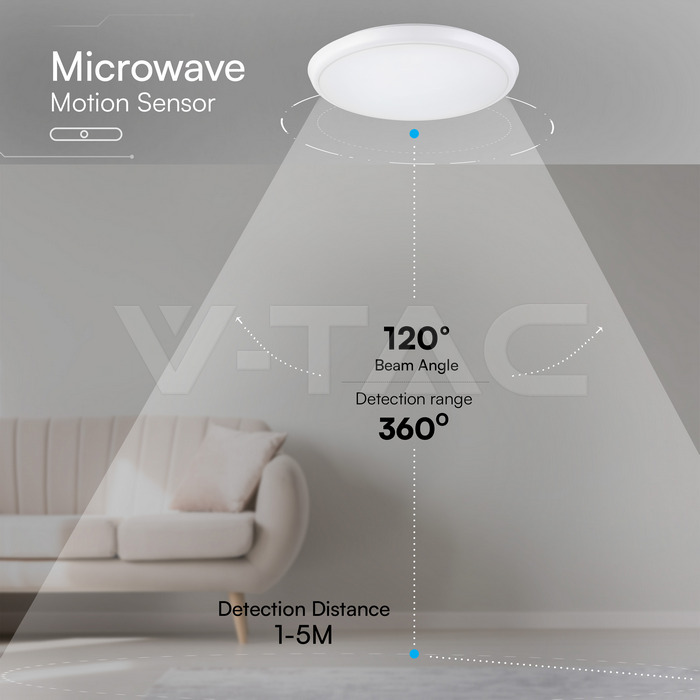

24360-7
24360-8
24360-9
24360-10

Downloads
Product Information Sheet
Manual
PPWR Declaration of Conformity
Specifications
General Information

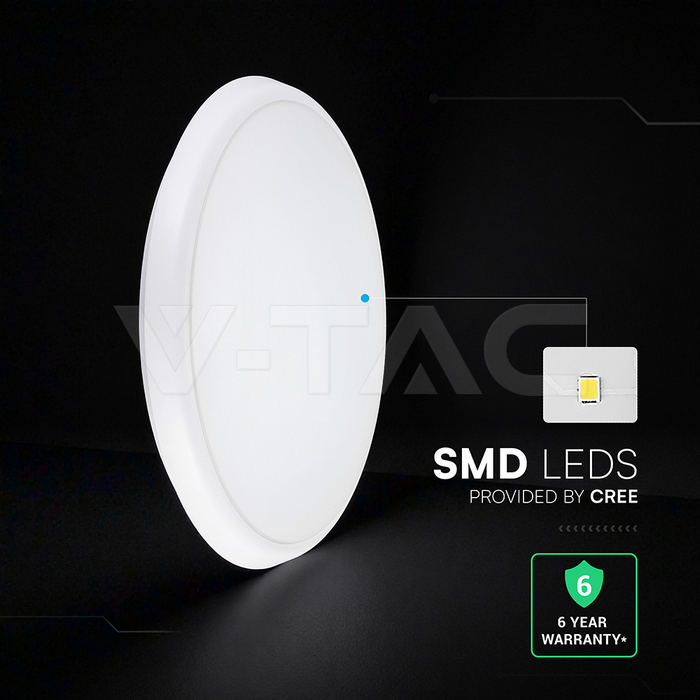

LED Chip
SMD-CREE Chip
Lifespan
30,000 Hours
Electrical Data
Wattage
40W
Voltage
AC:220-240V
Frequency
50/60Hz
Technical Data
Luminous efficiency (lm/W)
110 lm/W
Beam angle
120°

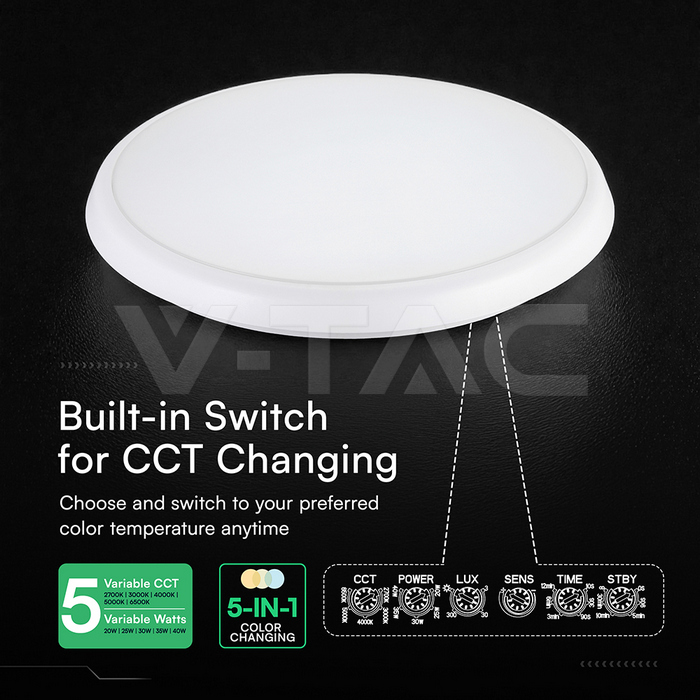

Light color
5 in 1
Luminous flux (lm)
4400 lm
Color Rendering Index CRI
>80
Body Details
Body color
White
Material
PC
Shape
Round
Capabilities

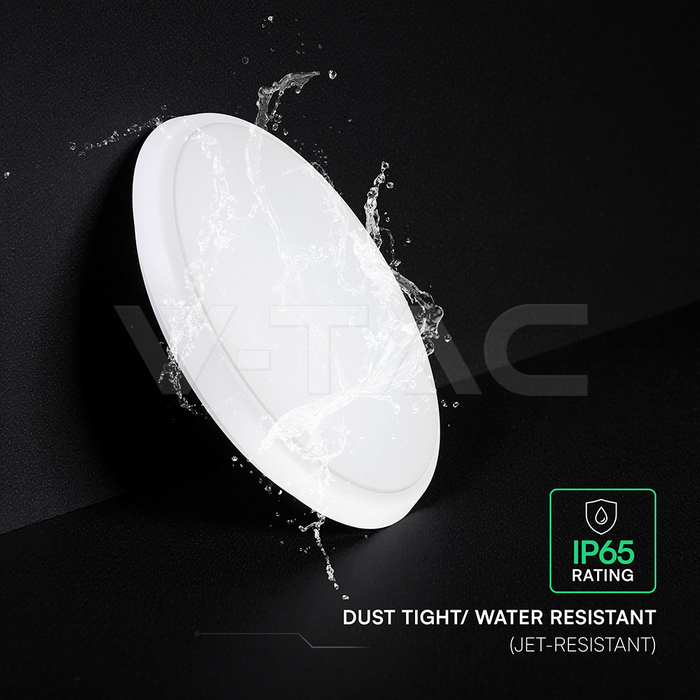

IP Rating
IP65
Sensor Type
Microwave Sensor
Sensor
Yes
Detection Range
360°
Detection Distance
Wall 1-5m, Ceiling 2-8m
Time Delay
Min 10sec±3sec, Max 12min±1min
Starting Time 100% ON
0.001 sec (instant on)
Dimensions

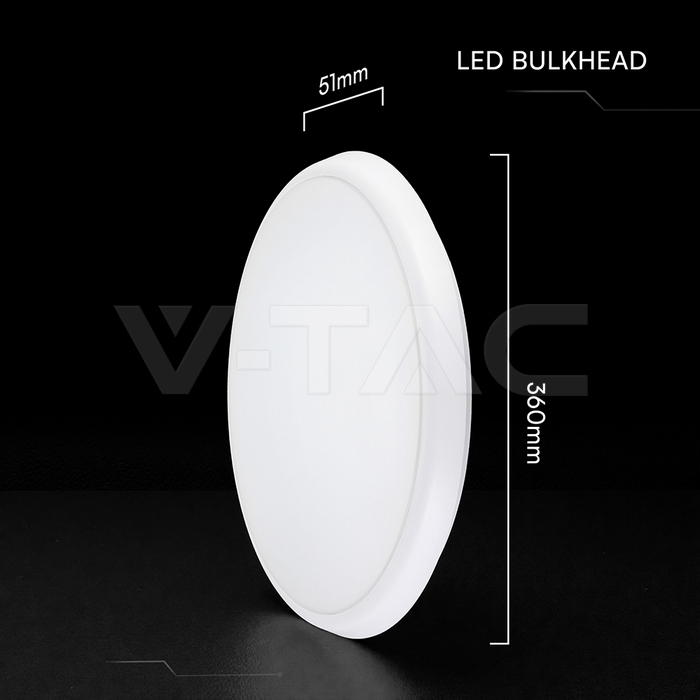

Size
360x51mm
Product Data
Order code
24360
Product code
VT-8179
Items per pack
1
Item Weight
1.66
Item Volume
0.01109
Items per box
5
EAN Code
3800170260351
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
E
Additional
Release Date
28.02.26
Manufacturer
V-TAC
Warranty
6 Years

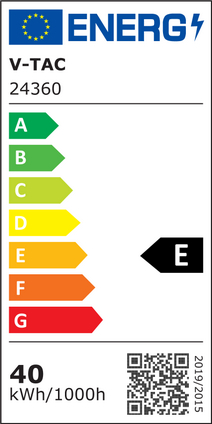

Energy Class Graphics
Energy Class
