50kW Hybrid Inverter and 60kWh Battery IP20 Indoor

SKU: 22022 | VT:
11861
11862-2
11862
11862-3
11862-4
11862-5

Set includes:

  • 50kW Hybrid Inverter Three Phase SKU: 11861 x 1 pcs;
  • 60kWh Battery module: 5.12kWh LiFePO4 Battery SKU: 11862 x 12 pcs

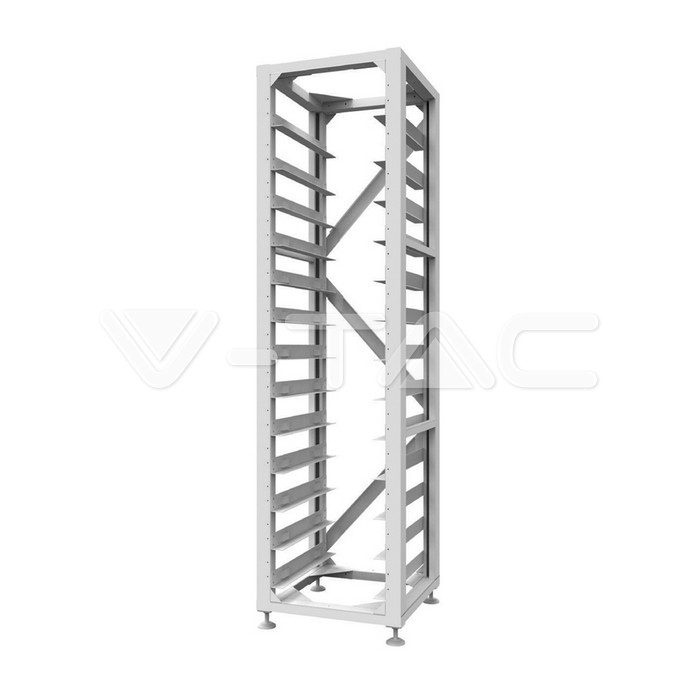

  • Mounting Rack, Control box and Accessories
Downloads
Manual
IEC 62619
CEI 0-21
CEI 0-16
EN 50549
EMC License
LVD License
Warranty Conditions
|
Expansion and Use Statement
Technical Specifications
Specifications
Electrical Data
Wattage
  • Battery System energy: 61.44kWh;
  • Each Battery: 5.12kWh;
  • Max. Input Power Inverter: 65000W;
Current
  • Inverter:
  • PV Input Current: 36+36+36+36A;
  • Max. PV ISC (A): 55+55+55+55;
Voltage
  • Inverter Rated Input Voltage: 600V;
  • Inverter Full-load DC Voltage Range: 450-850V;
  • Battery module Working Voltage: 538 ~ 691V;
Frequency
50/60Hz
Capabilities
IP Rating
IP20
Working conditions
  • Inverter: ~-40~60( >45℃ derating);
  • Battery: Charge 0～55℃ / Discharge -20℃～55℃;
Dimensions
Size

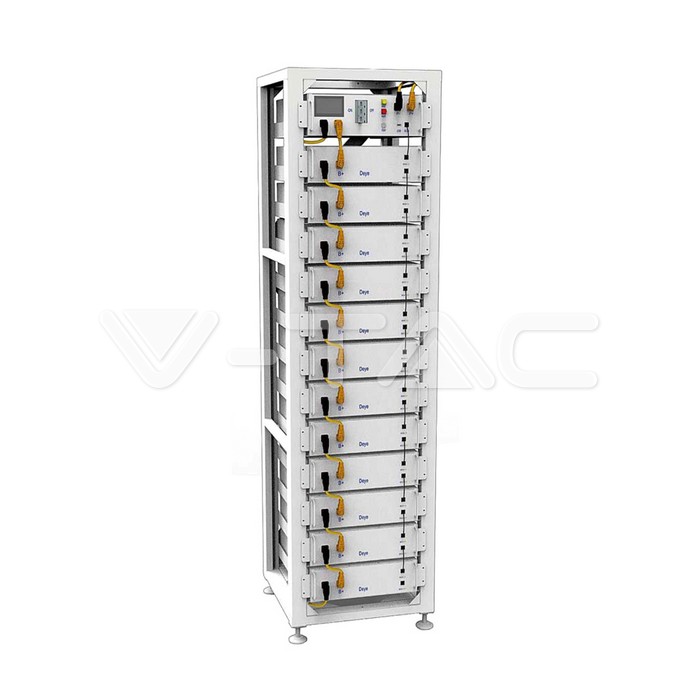

  • 589x590x2240 Battery Module and Rack;
  • 440x570x133 Each Battery;
  • 527x894x294 Inverter;
Product Data
Order code
22022
Item Weight
  • The total weight (12 battery modules, 1 rack) 628 kg;
  • Weight of each battery module/battery rack 44 kg and 85 kg;
  • 100 kg Inverter;
Certificates & Standards
Certification
Battery module CE/IEC62619/ UN38.3
Additional
Release Date
18.12.2023
Brand
V-TAC
Warranty
10 years
