6kW Hybrid Solar Inverter Single Phase 10yrs Warranty

SKU: 11529 | VT: SUN-6K-SG03LP1-EU
11529-2
11529-3
11529-4
11529-5
11529-6
11529-7
11529-8
How to Install V-TAC Single Phase Hybrid Inverters V-TAC

Downloads
Declaration of product model
Manual
CEI 0-21
|||||||
Declaration of Conformity
EMC License
LVD License
Technical Specifications
Warranty Conditions
|
Specifications
General Information
Electrical Data
Wattage
  • Max. DC Input Power: 7800W;
  • Rated AC Output and UPS Power (W): 6000W;
  • Max. AC Output Power: 6600W;
Current
  • AC Output Rated Current (A): 27.3/26.1;
  • Max. AC Current (A): 30/28.7
  • Max. Continuous AC Passthrough: 40A;
Voltage
  • Rated PV Input Voltage: 370 (125~500);
  • MPPT Range: 150-425;
  • Full Load DC Voltage Range (V) 300-425;
  • Start-up Voltage: 125V;
Frequency
50/60Hz
Power Factor
0.8 leading to 0.8 lagging
Phase
Single Phase
Capabilities
Working conditions
-40~60°C, >45°C derating

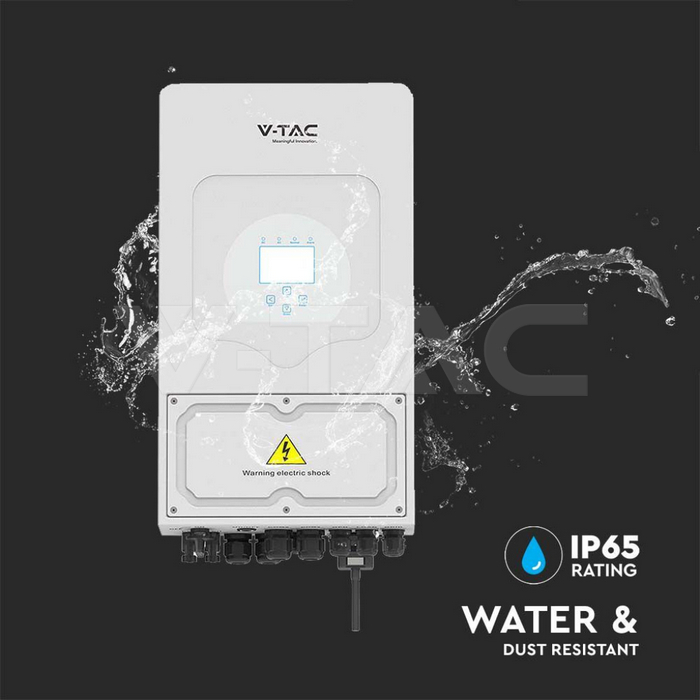

IP Rating
IP65

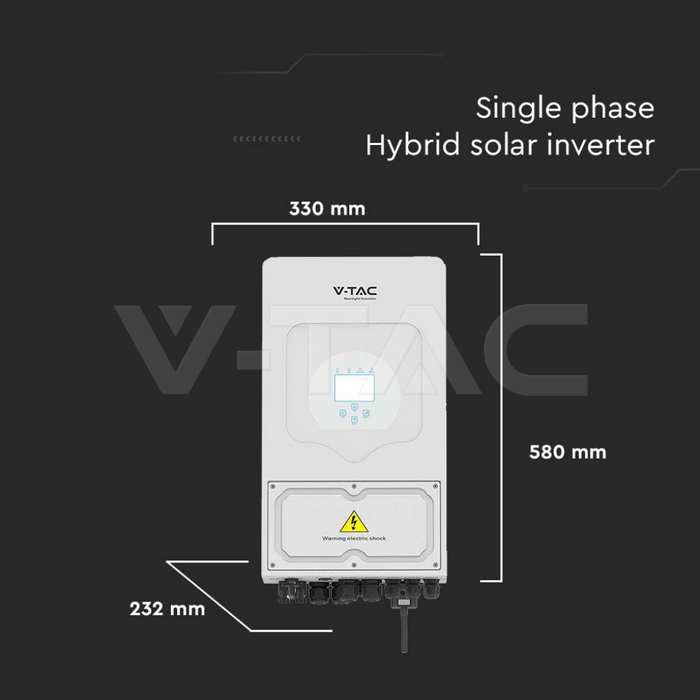

Dimensions
Size
330W x 580H x232D
Product Data
Order code
11529
Product code
SUN-6K-SG03LP1-EU
Item Weight
24 kg
Additional
Brand
Deye
Warranty
10 years
