3kW On-Grid Solar Inverter LCD Display Single Phase 10 yrs Warranty IP65

SKU: 11379 | VT: VT-6603110
Downloads
Technical Specifications
Manual
ЕМС Report
EMC License
LVD License
LVD Report
EN 50549
Warranty Conditions
|
Specifications
General Information
Electrical Data
Current
  • Max. Current per MPPT: 8A
  • Max. Output Current: 14A
Wattage
  • Max. Input Power: 3.6kW;
  • Rated AC Power: 3kW;
Voltage
  • Max. Input (DC): 600V;
  • Start Voltage/Min. Operating (DC): 120/100V;
  • MPPT Range (DC): 120V-550V;
  • MPPT Rated (DC): 360V;
  • Rated Grid Voltage (AC): 230V, L+N+PE
Frequency
Rated Grid Frequency 50Hz / 60Hz
Power Factor
≥0.99 (Rated Power)
Capabilities
IP Rating
IP65
Working conditions
-25°C to +60°C (Derating above 45º)

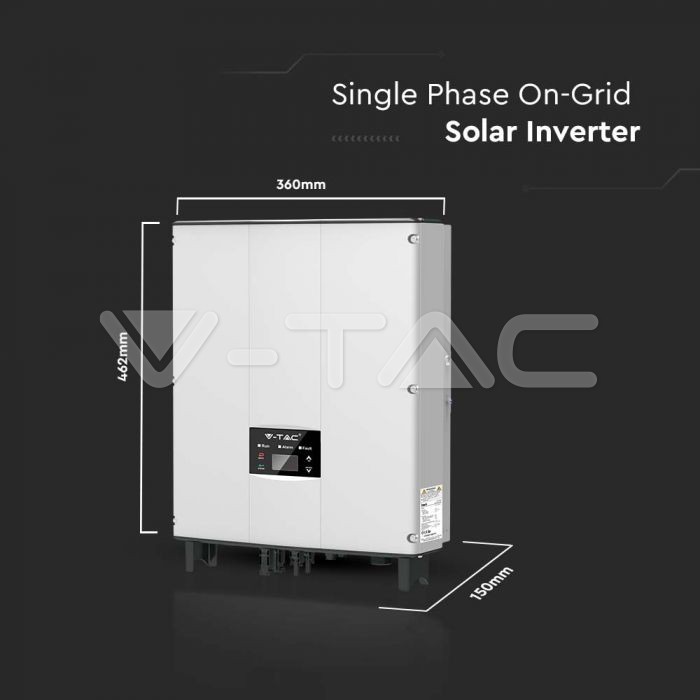

Dimensions
Size
360 x 462 x 150 mm
Product Data
Order code
11379
Product code
VT-6603110
Item Weight
18kg
Additional
Release Date
15.09.2022
Brand
V-TAC
Warranty
10 years
