12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty

SKU: 12225 | VT: S6-EH3P12K-H
12225-2

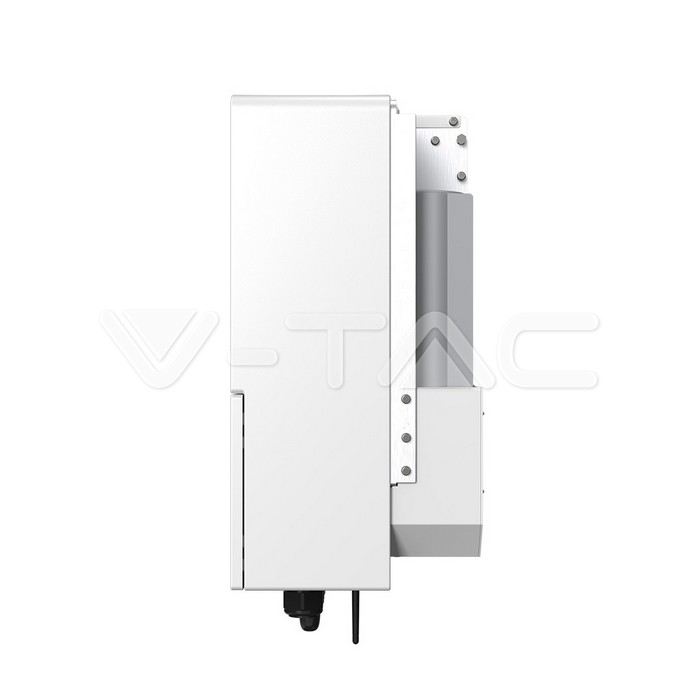

12225-3

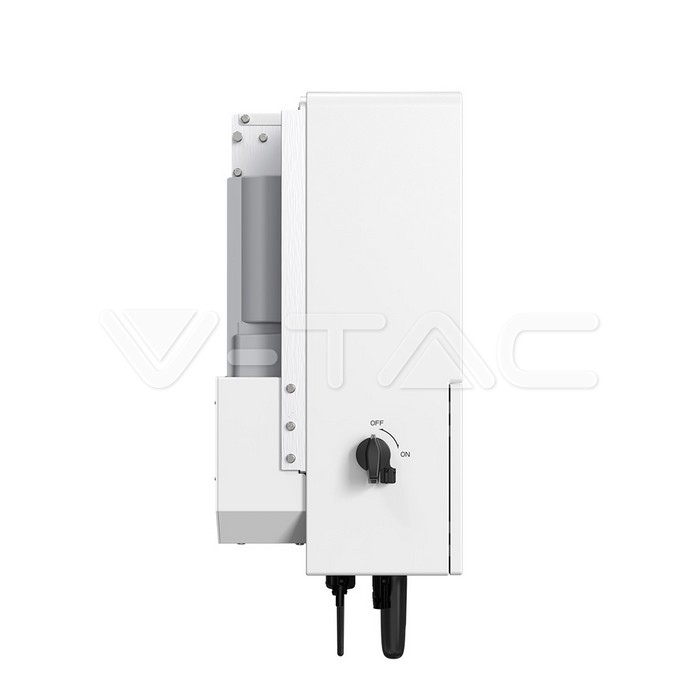

12225-4
12225-5

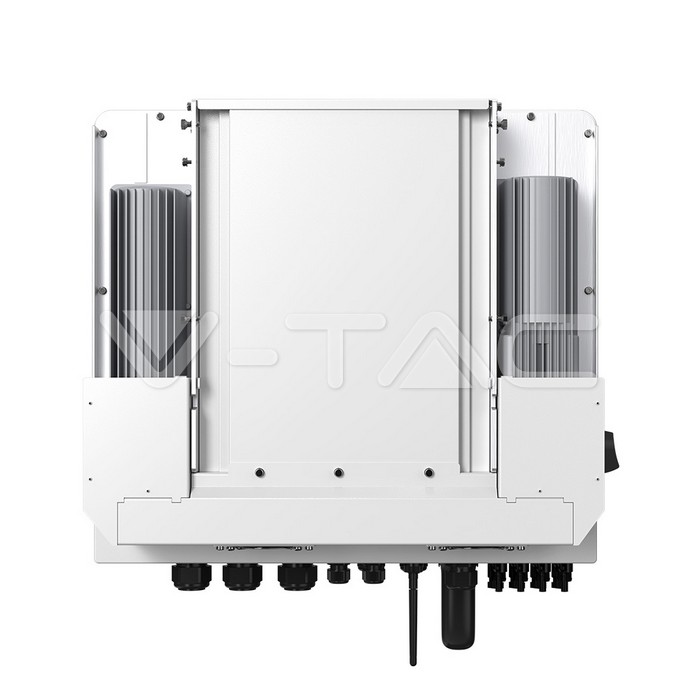

12225-6

Downloads
Manual
Compatibility list
EN 50549
CE
Technical Specifications
EMC License
LVD License
Specifications
General Information
Electrical Data
Current
  • Max. input current: 20A / 20A / 20A / 20A
  • Max. short circuit current: 30A / 30A / 30A / 30A;
  • Max. output current: 18.2A / 17.3A;
  • Rated grid output current: 18.2A / 17.3A;
Wattage
  • Max. usable PV input power: 19.2kW;
  • Max. charge / discharge power: 12kW;
  • Rated output power AC: 12kW
Voltage
  • Max. PV Input DC Voltage: 1000V;
  • MPPT Range: 200~850V;
  • Rated PV Input DC Voltage: 600V;
  • Start-up Voltage: 160V;
Frequency
Rated grid frequency: 50 Hz
Power Factor
>0.99 (0.8 leading - 0.8 lagging)
Phase
Three Phase
Capabilities
IP Rating
IP66
Working conditions
`-25 ~ +60°C
Dimensions
Size
599 x 546 x 243 mm
Product Data
Order code
12225
Product code
S6-EH3P12K-H
Items per pack
1
Item Weight
31 kg
Additional
Release Date
31.10.2024
Brand
SOLIS
Warranty
10 years
