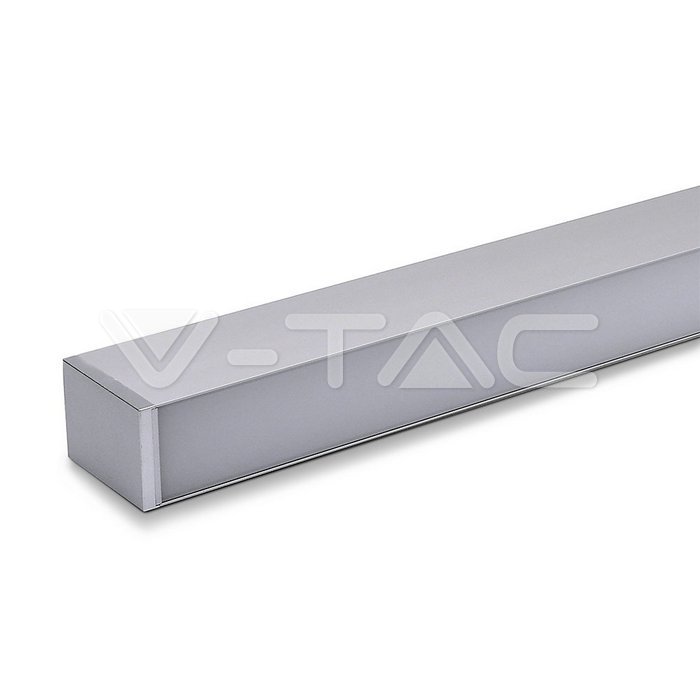

LED Linear Up Down Light SAMSUNG Chip 60W Hanging Silver Body 4000K

SKU: 378 | VT: VT-7-60
378-2
378-3
378-4

Product benefits

  • Linear hanging lights, designed with excellent heat dissipation;
  • Linkable with connectors - up to 12 meters;
  • Perfect replacement for traditional linear lighting fixtures with the efficient LED provided by Samsung;
  • Available in three colors options - black, silver and white

Applications

  • The LED Linear lights are an energy-efficient, low maintenance alternative to traditional linear lights in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations due to its low installation cost

Downloads
Manual
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
IES File
Product Information Sheet
Specifications
General Information
LED Chip
SAMSUNG Chip
Lifespan
30 000 hrs
Electrical Data
Wattage
60W
Voltage
AC: 200-240V
Frequency
50Hz
Power Factor
>0.9
Technical Data
Light color
Natural White
Color Temperature
4000K
Luminous flux (lm)
6000 lm
Color Rendering Index CRI
>80
Beam angle
120°
Luminous efficiency (lm/W)
100 lm/W
Body Details
Material
Aluminium
Type
Hanging
Body color
Grey
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
1909.85 Cd Max.
On/Off cycles
>30000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
IP Rating
IP20
Dimensions
Size
1200 x 75 x 105 mm
Product Data
Order code
378
Product code
VT-7-60
Items per pack
1
Item Weight
4,9
Item Volume
0,012192
Items per box
9
EAN Code
3800157638524
Certificates & Standards
Energy efficiency class
E
Certification
CE, EMC, ROHS
Additional
Brand
V-TAC
Warranty
5 years
Additional information
Luminous Flux UP: 2000 lm / Down: 4000 lm; Wattage UP: 20W / Down: 40W
