LED Panel 36W 595x595mm Backlit  120lm/W 6400K 8PCS/SET

SKU: 216707 | VT: VT-6436
216707-2
216707-3
216707-4
216707-5
216707-6
216707-7

Product benefits

  • Ultra Slim, Contemporary & Elegant Design
  • Higher Light Transmission Rate
  • Exterior shell, cannot be easily damaged
  • No infrared, does not attract flies
  • Easy to install
  • No Lead or Mercury content
  • Environment friendly
  • Dimmable options available in selected models

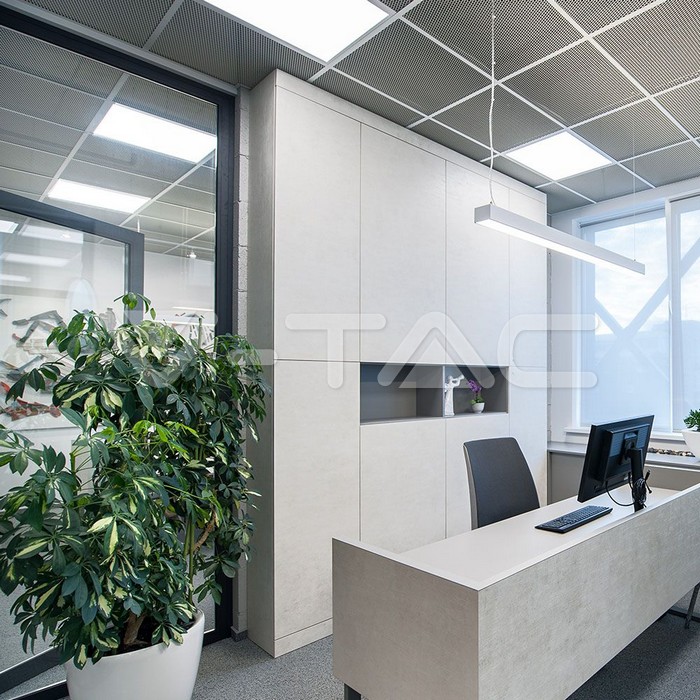

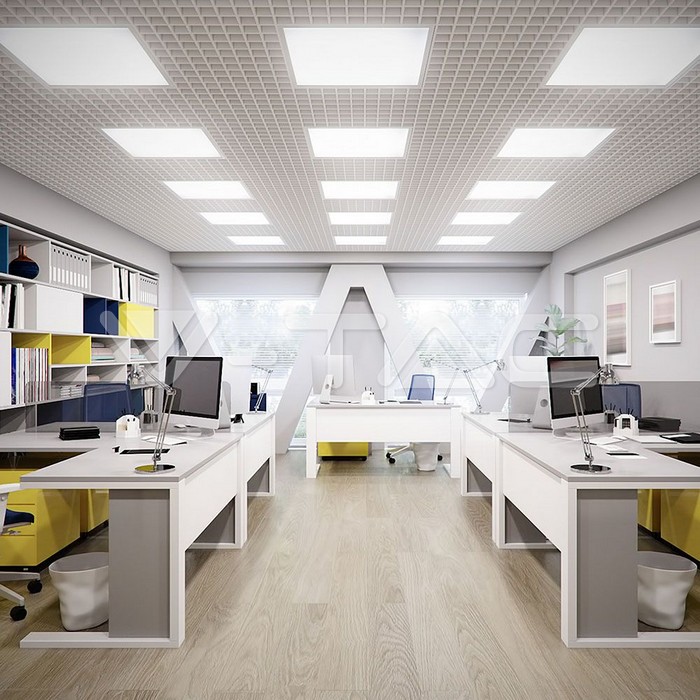

Applications

  • Office Lighting
  • Conference Halls
  • Hospitals
  • Hotels
  • Shopping Malls
  • Showroom and lobby cabin etc.
    • Kitchen and Domestic Lighting
Downloads
Product Information Sheet
Manual
Declaration of Conformity
RoHS Report
ЕМС Report
EMC License
LVD License
RoHS License
LVD Report
Specifications
General Information

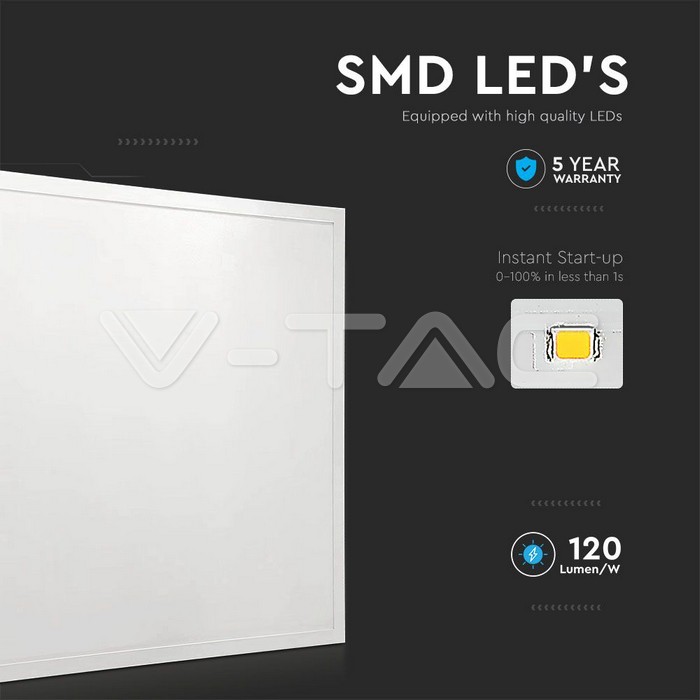

LED Chip
SMD
Lifespan
30000 hrs
Electrical Data
Wattage
36W
Voltage
AC:220-240V
Frequency
50/60Hz
Power Factor
>0.9
Technical Data
Luminous efficiency (lm/W)
120 lm/W
Light color
White
Color Temperature
6400K
Luminous flux (lm)
4320 lm
Color Rendering Index CRI
>80

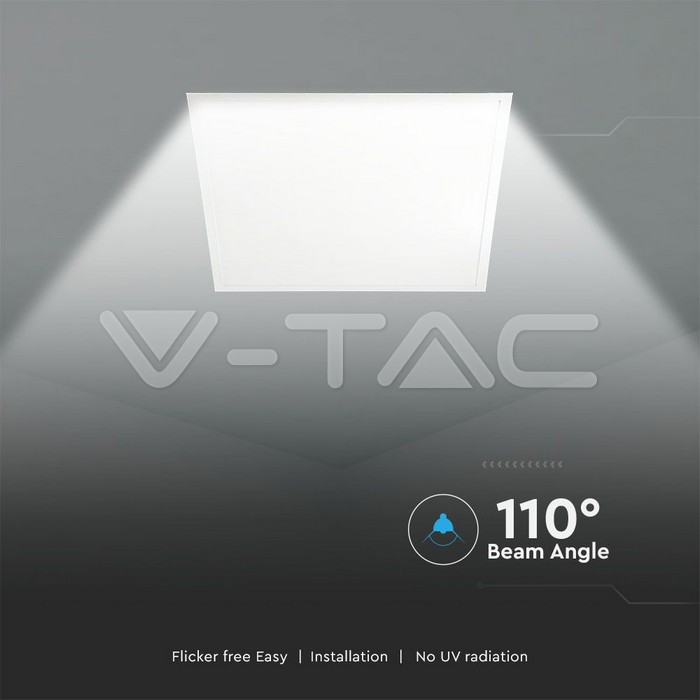

Beam angle
110°
Body Details
Material
Aluminium + PMMA + PP
Capabilities
IP Rating
IP20
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>15000

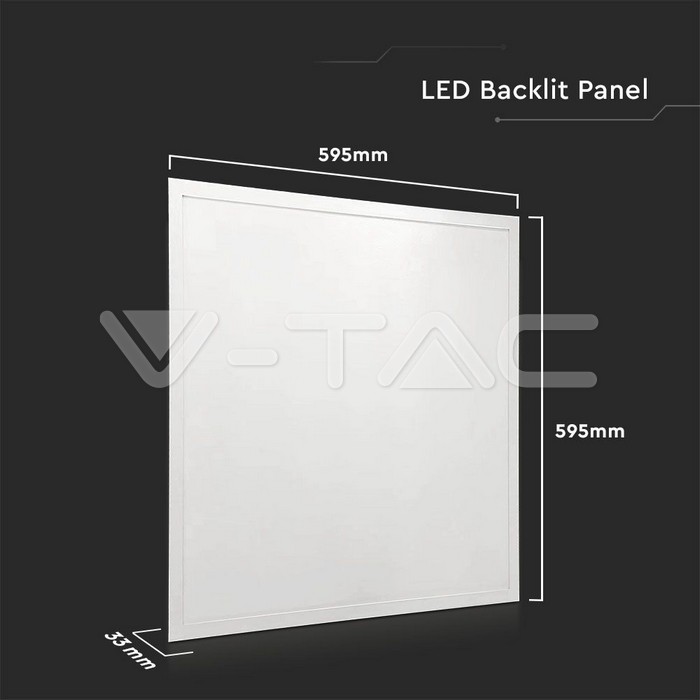

Dimensions
Size
595x595x33 mm
Product Data
Order code
216707
Product code
VT-6436
Items per pack
1
Item Weight
1,63125
Item Volume
0,01727
Items per box
8
EAN Code
3800157682206
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
E
Additional
Release Date
06.09.2022
Brand
V-TAC
Warranty
5 yrs
Energy Class Graphics
Energy Class
