LED Panel 29W 1200x300mm 4500K incl Driver 6PCS/SET

SKU: 216257 | VT: VT-12031-N
216256-2
216256-3
216256-4
216256-5
216256-6
216256-7

Product benefits

  • Ultra Slim, Contemporary & Elegant Design
  • Higher Light Transmission Rate
  • Exterior shell, cannot be easily damaged
  • No infrared, does not attract flies
  • Easy to install
  • No Lead or Mercury content
  • Environment friendly
  • Dimmable options available in selected models

Applications

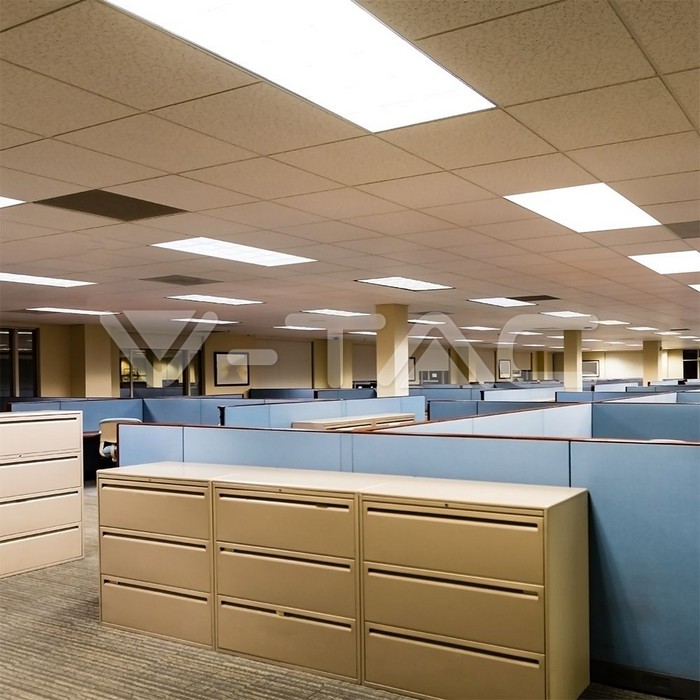

  • Office Lighting
  • Conference Halls
  • Hospitals
  • Hotels
  • Shopping Malls
  • Showroom and lobby cabin etc.
    • Kitchen and Domestic Lighting
Downloads
Product Information Sheet
Manual
Declaration of Conformity
RoHS Report
ЕМС Report
EMC License
LVD License
RoHS License
LVD Report
Specifications
General Information
LED Chip
SMD
Lifespan
20 000 hrs
Electrical Data
Wattage
29W
Voltage
AC:200-240V
Frequency
50/60Hz
Power Factor
>0.9
Technical Data
Luminous efficiency (lm/W)
136 lm/W
Light color
Natural White
Color Temperature
4500K
Luminous flux (lm)
3960 lm
Color Rendering Index CRI
>80
Beam angle
120°
Body Details
Material

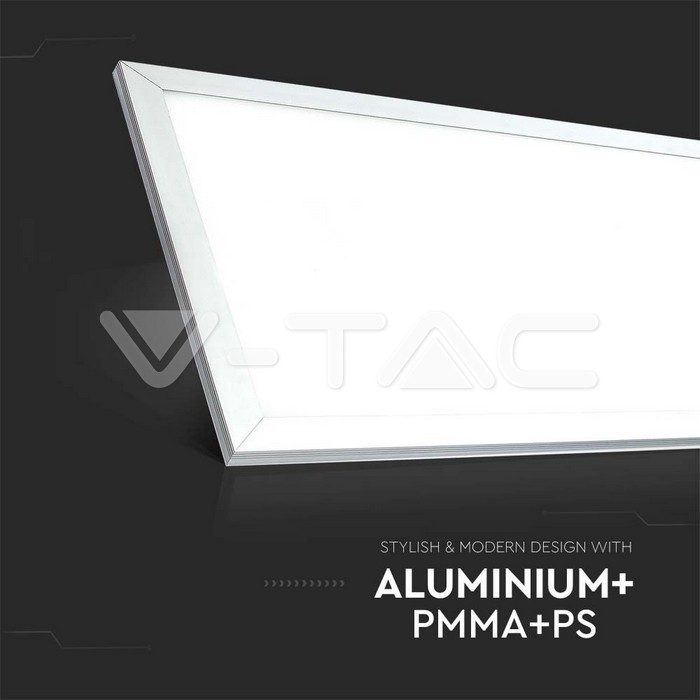

Aluinium+PMMA+PP
Capabilities
IP Rating
IP20
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>15000
Working conditions
-20°C to +40°C
Dimensions
Size

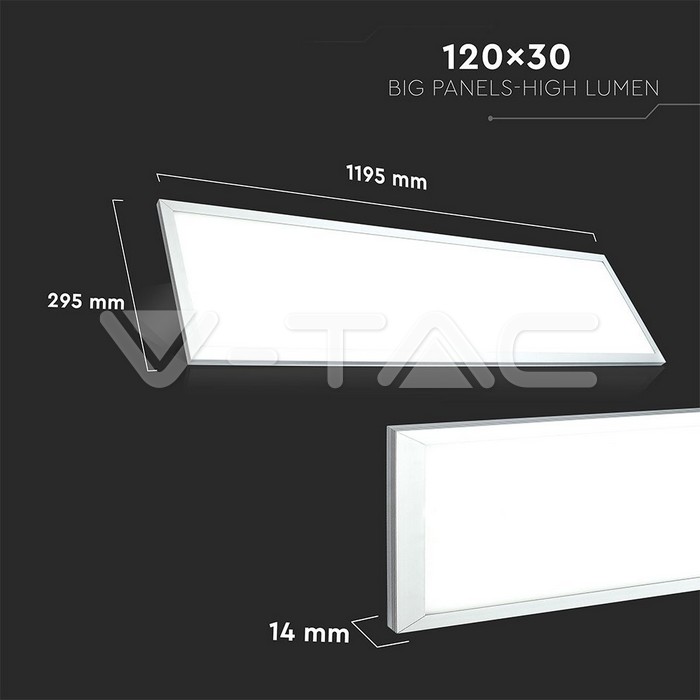

1195 x 295 x 12.5 mm
Product Data
Order code
216257
Product code
VT-12031-N
Item Weight
2,66
Item Volume
0,011793
Items per box
6
EAN Code
3800157680547
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
E
Additional
Release Date
28.06.2022
Brand
V-TAC
Warranty
2 years
Energy Class Graphics
Energy Class
