LED Strip SMD5050 60 LEDs RGB+White IP20

SKU: 2159 | VT: VT-5050 IP65
Replaced with SKU 212159
2159-2
2159-3
2159-4
2159-5
2159-6

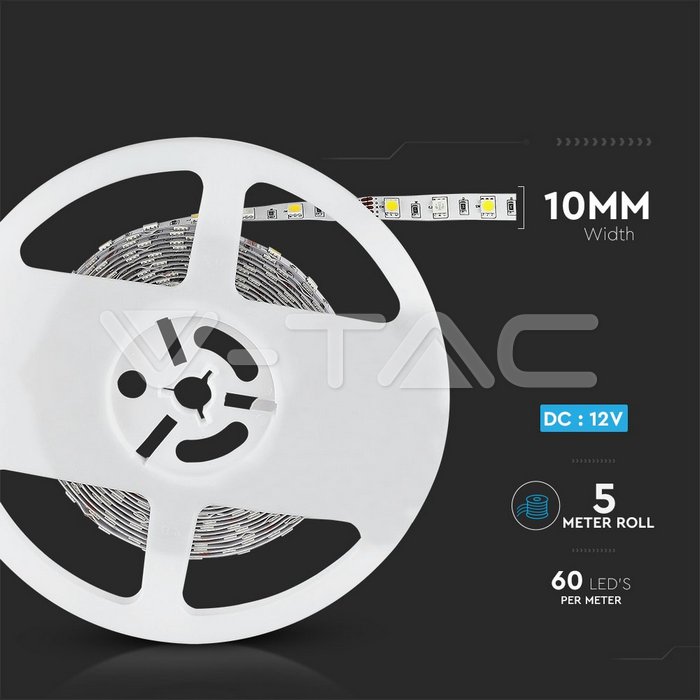

2159-7
2159-8
2159-9
2159-10
2159-11
2159-12

Product benefits

  • LED strip is a low voltage flexible ribbon available in 12V

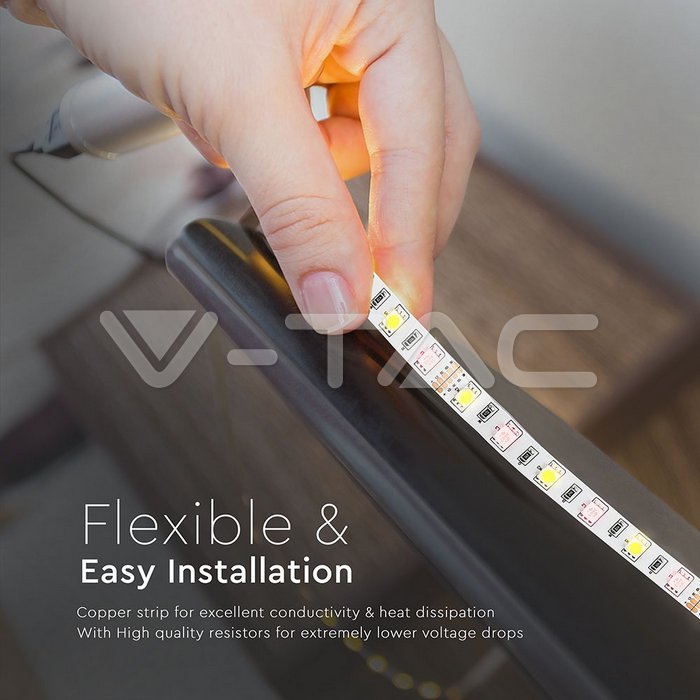

  • Flexible & easy installation
  • Exceptionally low power consumption
  • Multiple visual effects in unending colours and shades
  • Available in different color range from Warm White to RGB
  • IP20 and IP65 Rating options
  • 1 or 1.5 meter rigid bar options available

Applications

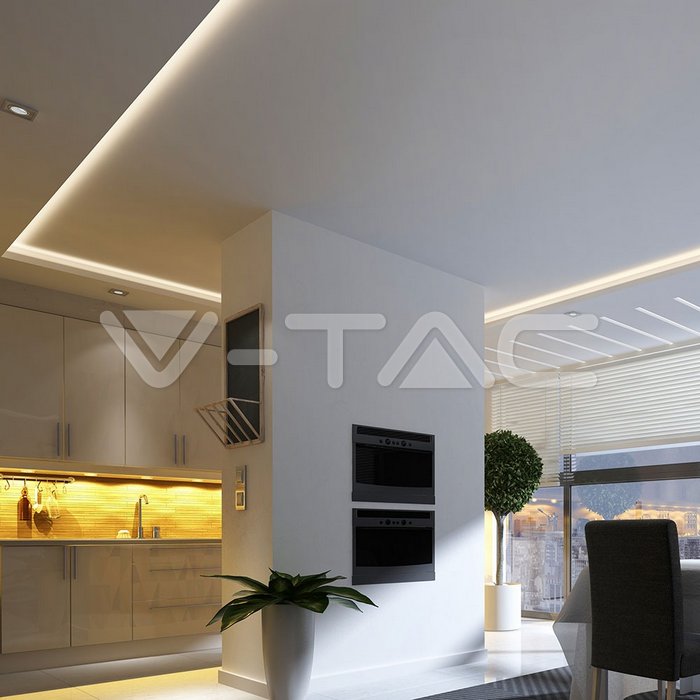

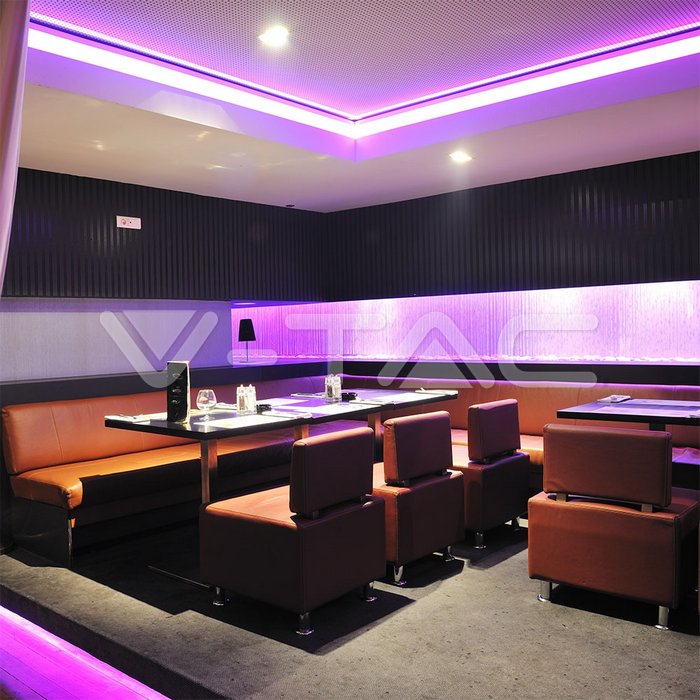

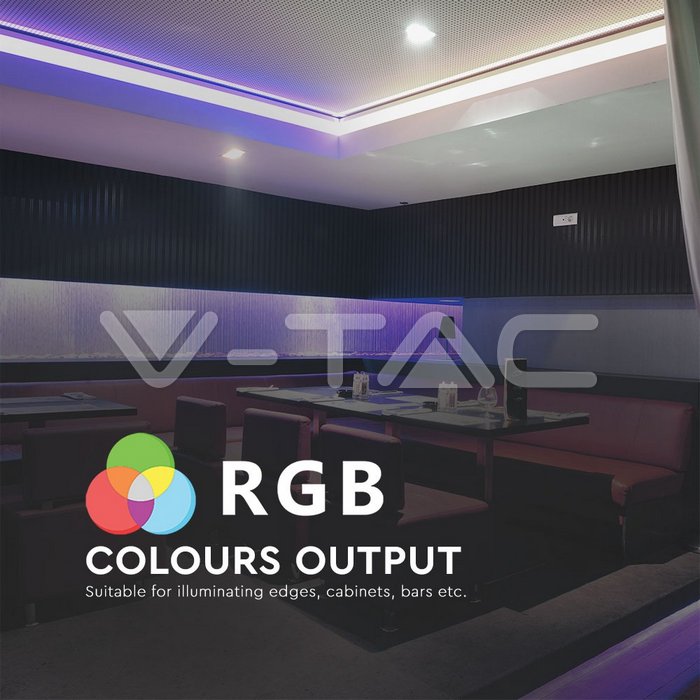

  • Ideal for illuminating Borders, Edges, Cabinets, Bars and any area with limited space for installation
Downloads
Technical Specifications
DEKRA License
N/A
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
Manual
Declaration of Conformity
Product Information Sheet
Specifications
General Information
LED Chip
SMD5050
Lifespan
>20 000 hrs
Electrical Data
Current
1.2A/m.
Wattage/m
10.8W
Voltage
DC:12V
Technical Data
Light color
RGB
Luminous flux/m
900 lm
LED Quantity
60 LED/m.
Lumens per LED
15 lm
Body Details
Material
PCB
Capabilities
Cut Points
Copper pads spaced every 3 LEDs. Cut only on the given cut line between the copper dots.
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
286.47 Cd Max.
On/Off cycles
15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°

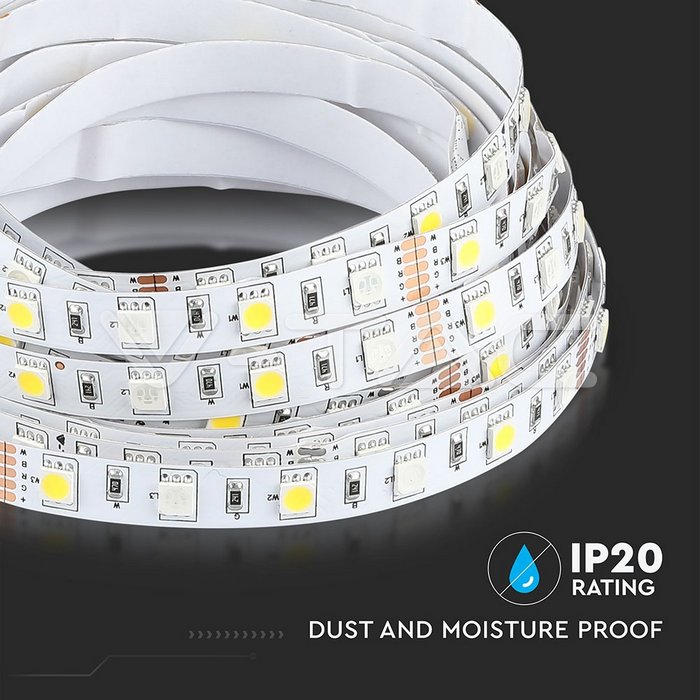

IP Rating
IP20
Dimensions
Width
10 mm
Product Data
Order code
2159
Product code
VT-5050 IP65
Items per pack
1 - 5m.
Item Weight
0,026
Item Volume
0,0006
Items per box
300
EAN Code
3800230629623
Certificates & Standards
Energy efficiency class
F
Certification
CE, EMC, ROHS
Additional
Brand
V-TAC
Warranty
2 years
Energy Class Graphics
Energy Class
