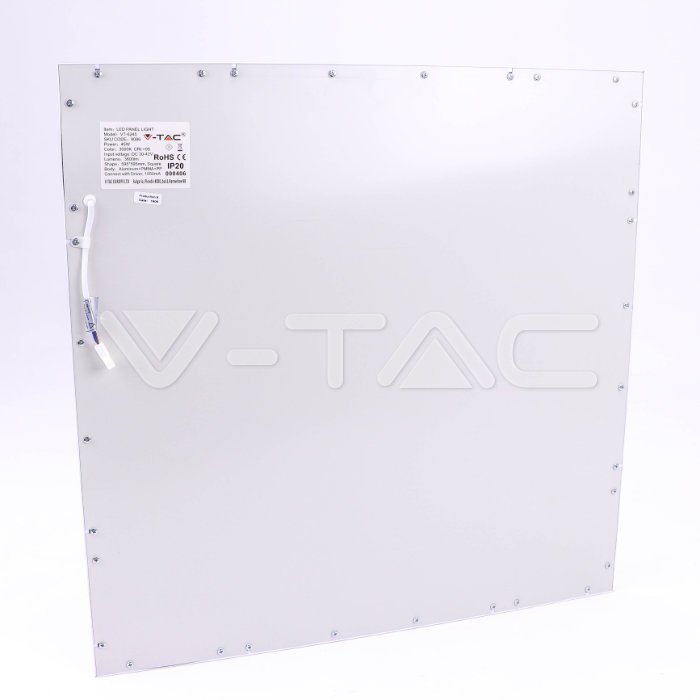

LED Panel 45W 600 x 600 mm 3000K Incl Driver 6pcs/Set CRI>95

SKU: 8086 | VT: VT-6245
8086-2

Product benefits

  • Ultra Slim, Contemporary & Elegant Design
  • Higher Light Transmission Rate
  • Exterior shell, cannot be easily damaged
  • No infrared, does not attract flies
  • Easy to install
  • No Lead or Mercury content
  • Environment friendly
  • Dimmable options available in selected models

Applications

  • Office Lighting
  • Conference Halls
  • Hospitals
  • Hotels
  • Shopping Malls
  • Showroom and lobby cabin etc.
    • Kitchen and Domestic Lighting
Downloads
Manual
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
IES File
Declaration of Conformity
Specifications
General Information
LED Chip
SMD
Lifespan
20 000 hrs
Electrical Data
Wattage
45W
Current
Input: 0.25A / Output:1050mA
Voltage
DC: 30-42V
Frequency
50/60Hz
Power Factor
>0.9
Technical Data
Light color
Warm White
Color Temperature
3000K
Luminous flux (lm)
3600 lm
Color Rendering Index CRI
>95
Body Details
Material
Aluminium, PMMA, PP
Shape
Square
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
1145.91 Cd Max.
On/Off cycles
>10000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Compatibility
Sensor Compatibility
IP Rating
IP20
IK Rating
IK05
Dimensions
Size
595 x 595 x 14 mm
Product Data
Order code
8086
Product code
VT-6245
Items per pack
6
Item Weight
17,5
Item Volume
0,058653
Items per box
1
EAN Code
3800157648363
Additional
Energy Class Graphics
Energy Class
