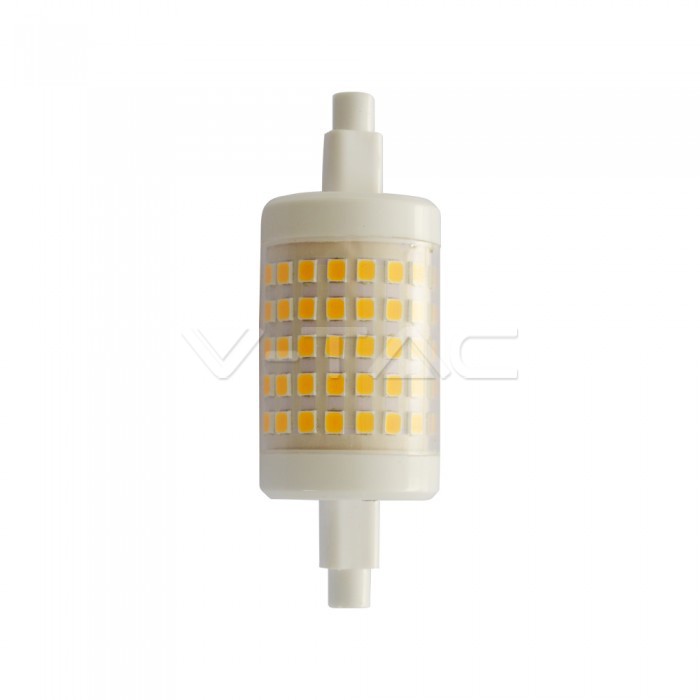

LED Bulb 7W R7S 78 mm Plastic 3000K

SKU: 2713 | VT: VT-2237
Replaced with 212713
2713-2714-2715

Downloads
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
Product Information Sheet
Specifications
General Information
Bulb shape
R7
LED Chip
SMD
Lifespan
30 000 hrs
Base
R7s
Electrical Data
Wattage
7W
EQ. Wattage
45W
Voltage
AC: 220-240V
Frequency
50Hz
Power Factor
>0.5
Technical Data
Light color
Warm White
Color Temperature
3000K
Luminous flux (lm)
580 lm
Color Rendering Index CRI
>80
Body Details
Material
Plastic
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
46.1 Cd Max.
On/Off cycles
>15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Lumen maintenance factor at the end of the nominal life
70%
IP Rating
IP20
Dimensions
Height
78 mm
Diameter
28 mm
Product Data
Order code
2713
Product code
VT-2237
Items per pack
1
Item Weight
0,03
Item Volume
0,000072
Items per box
200
EAN Code
3800157644372
Certificates & Standards
Energy efficiency class
G
Certification
CE, EMC, ROHS
Additional
Brand
V-TAC
Warranty
2 years
Dimensions Graphics
Dimensions
Energy Class Graphics
Energy Class
