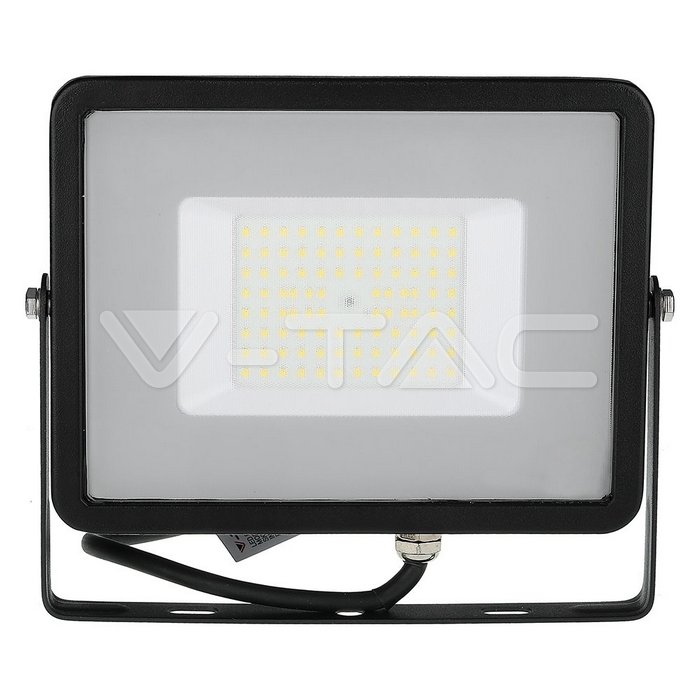

50W LED Floodlight SMD SAMSUNG Chip Slim Black Body 6400K 120 lm/Watt

SKU: 761 | VT: VT-56
Replaced with SKU 21761
760-2
760-3
760-4
760-5
760-6
760-7
760-8
760-9
760-10
760-11
760-12
760-13

Product benefits

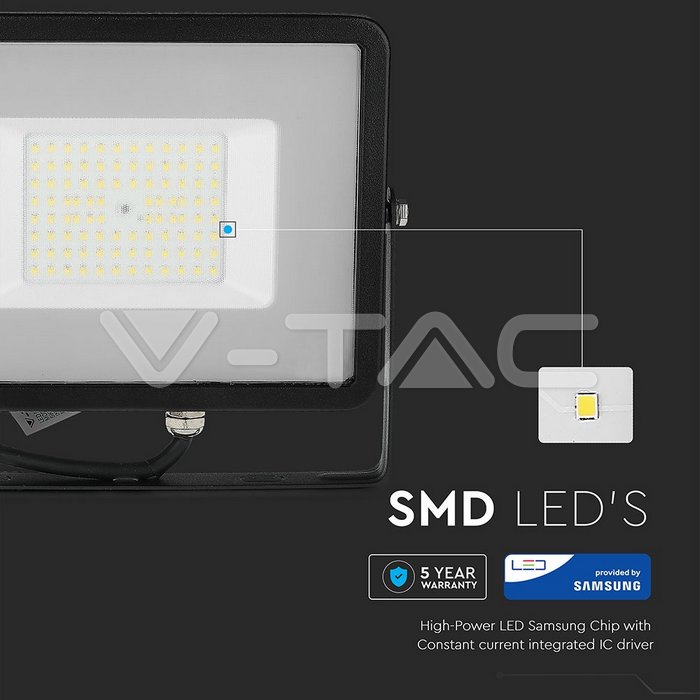

  • LED Chip provided by SAMSUNG
  • White, Natural and Warm White light color options

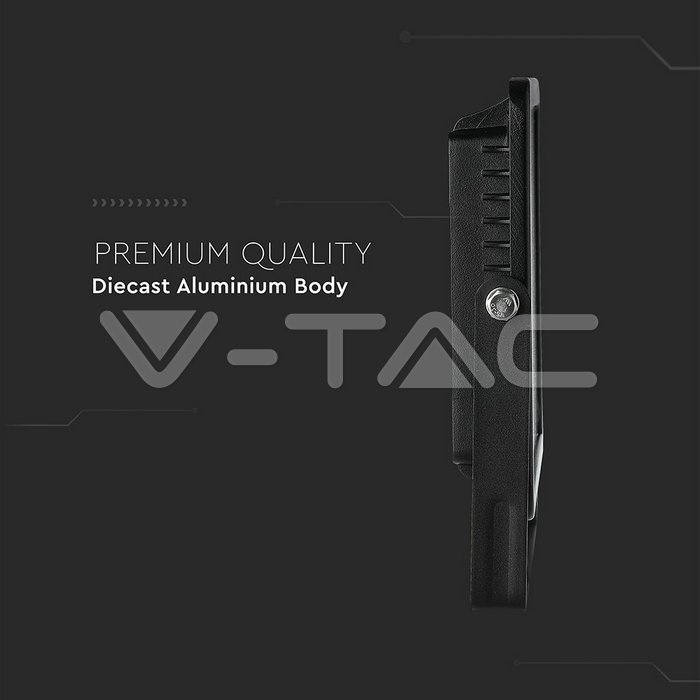

  • Premium quality Aluminium body
  • Corrosion Resistant

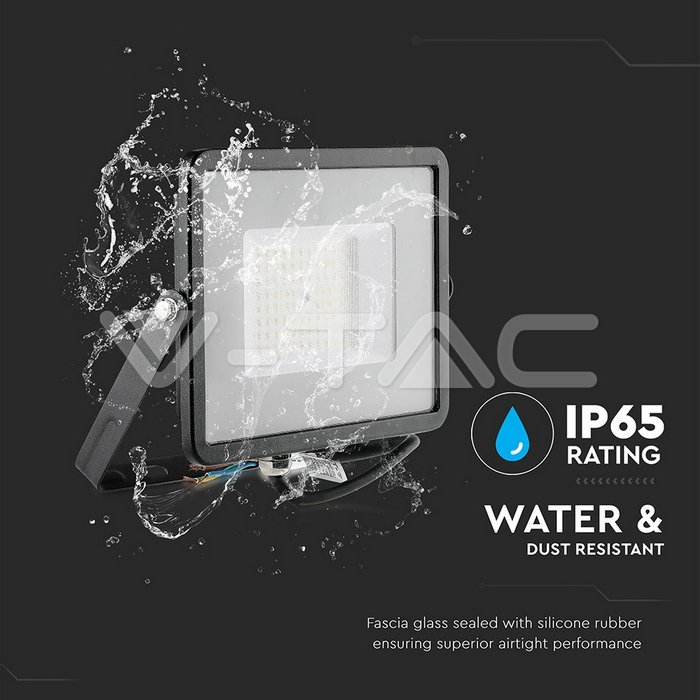

  • Fascia glass sealed with silicone rubber ensuring superior waterproof / airtight performance
  • Built in constant current driver
  • Built in Power supply, No external ballast required

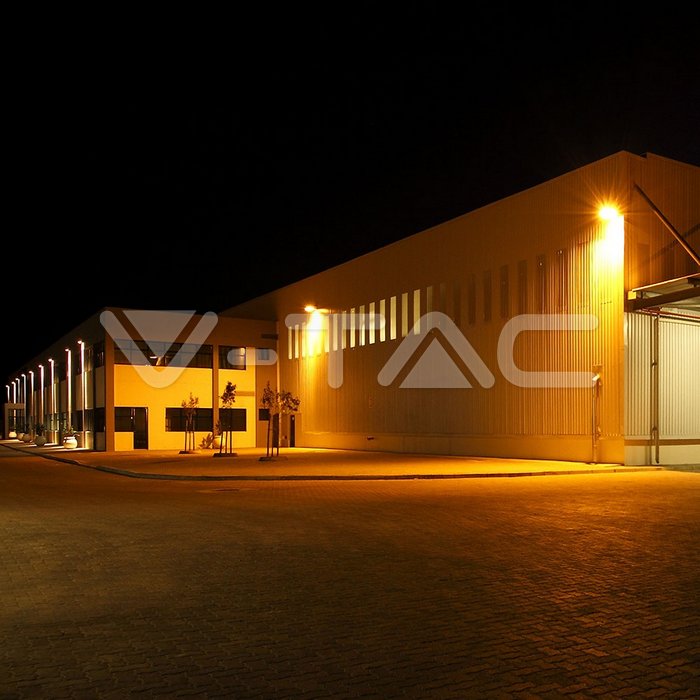

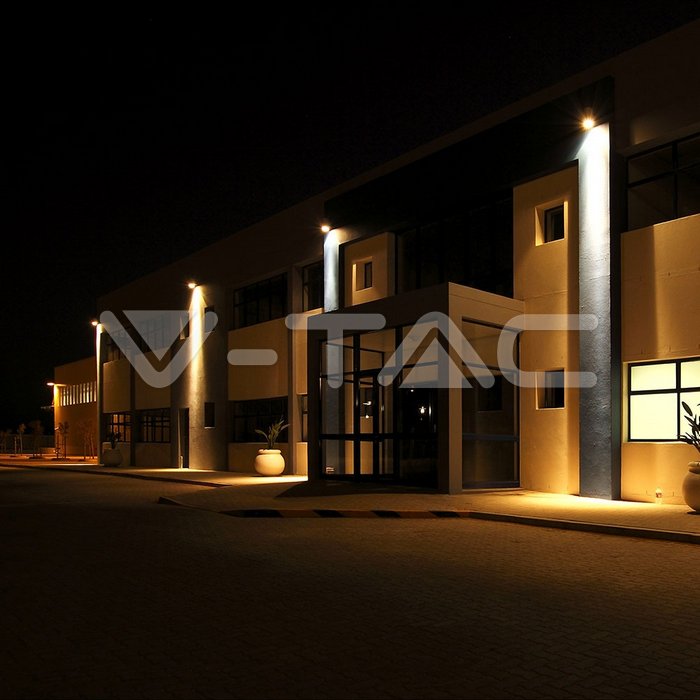

Applications

  • Driveways
  • Gardens
  • Bill Boards
  • Sports Grounds
  • Parking Lots etc.
Downloads
Manual
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
IES File
LM-80
Declaration of Conformity
Product Information Sheet
Specifications
General Information
LED Chip
SAMSUNG Chip
Lifespan
30 000 hrs
Electrical Data
Wattage
50W
Voltage
AC: 220-240V
Frequency
50Hz
Power Factor
>0.9
Technical Data

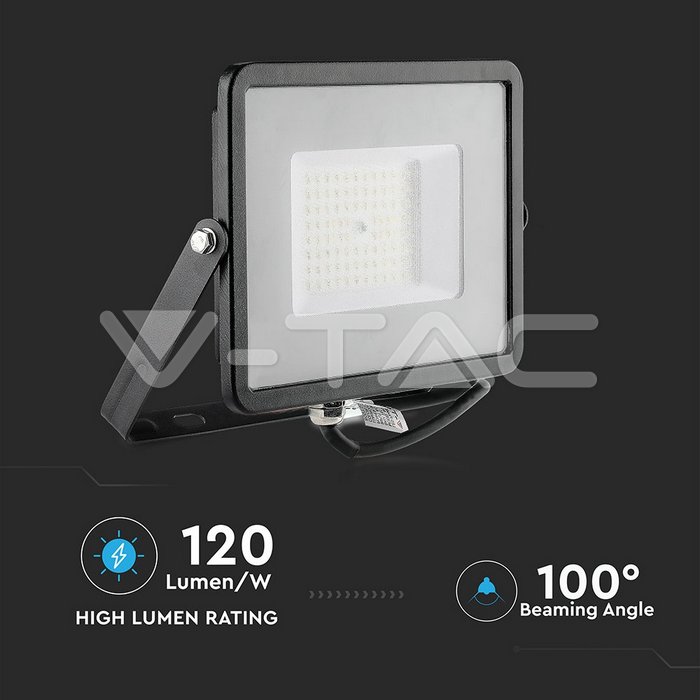

Luminous efficiency (lm/W)
120 lm/W
Light color
White
Color Temperature
6400K
Luminous flux (lm)
6000 lm
Color Rendering Index CRI
>80
Body Details
Material
Die cast aluminum
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
2673.28 Cd Max.
On/Off cycles
>15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Compatibility
Sensor Compatibility
IP Rating
IP65
IK Rating
IK05
Dimensions

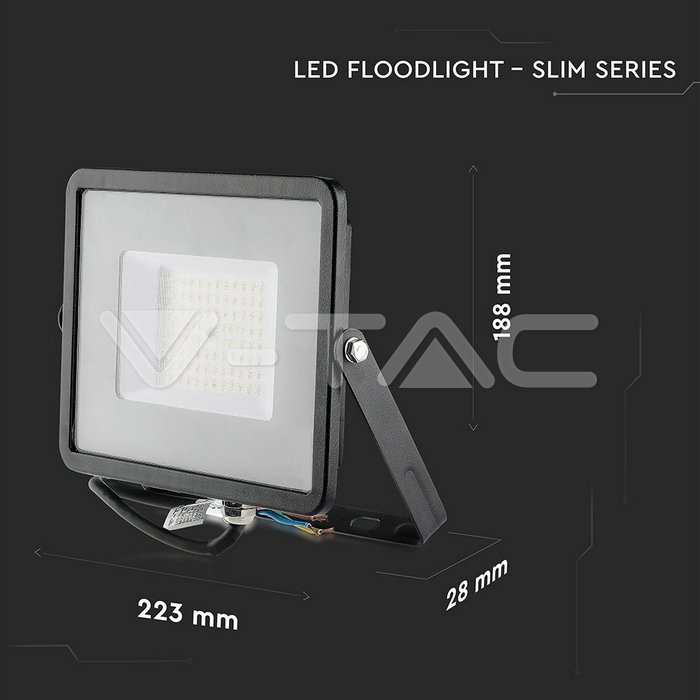

Size
223 x 188 x 28 mm
Product Data
Order code
761
Product code
VT-56
Items per pack
1
Item Weight
0,863
Item Volume
0,00045435
Items per box
8
EAN Code
3800157646260
Certificates & Standards
Energy efficiency class
D
Certification
CE, EMC, ROHS
Additional
Brand
V-TAC
Warranty
5 years
Energy Class Graphics
Energy Class
