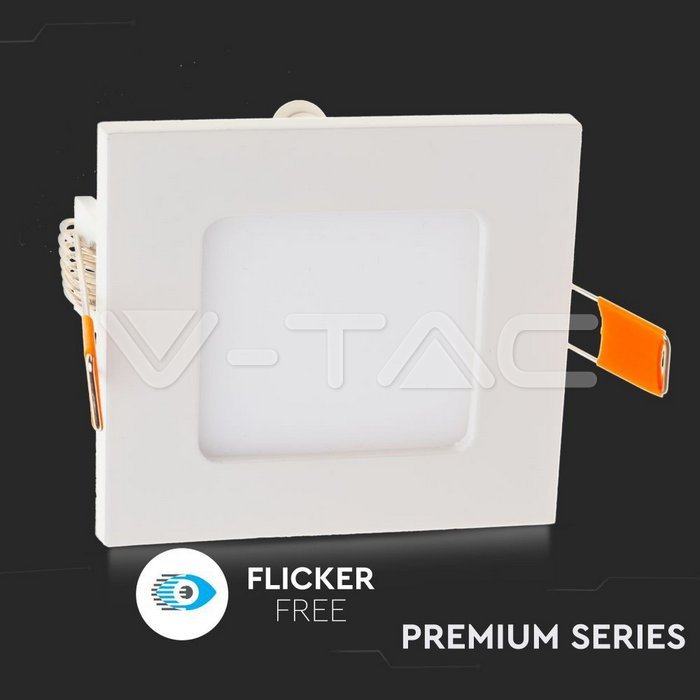

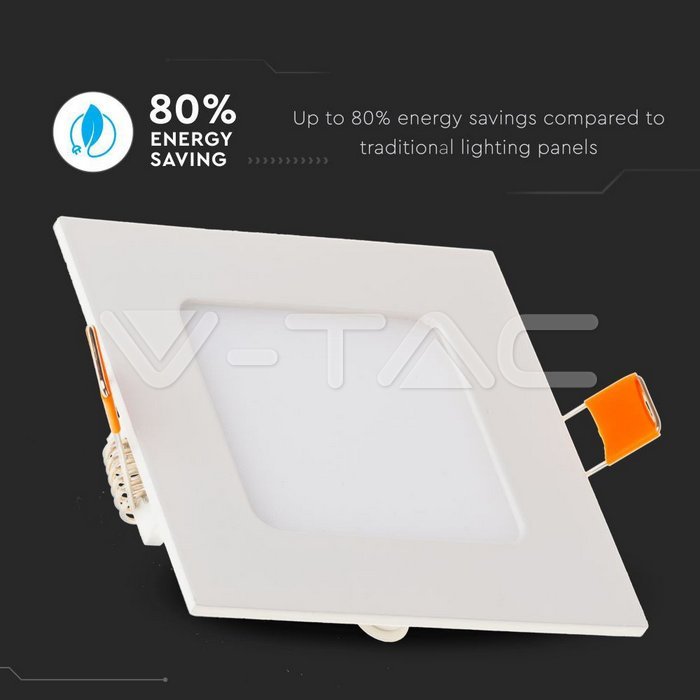

3W LED Panel Premium Square White

SKU: 6297 | VT: VT-307 SQ
6297-2
6297-3
6297-4
6297-5
6297-6
6297-7

Product benefits

  • Ultra Slim, Contemporary & Elegant Design
  • Higher Light Transmission Rate
  • Exterior shell, cannot be easily damaged
  • No infrared, does not attract flies

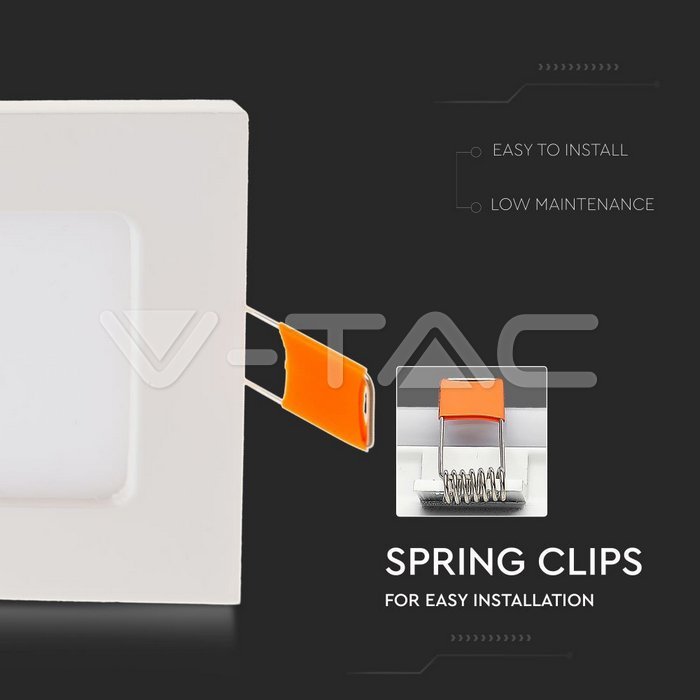

  • Easy to install
  • No Lead or Mercury content
  • Environment friendly
  • Dimmable options available in selected models

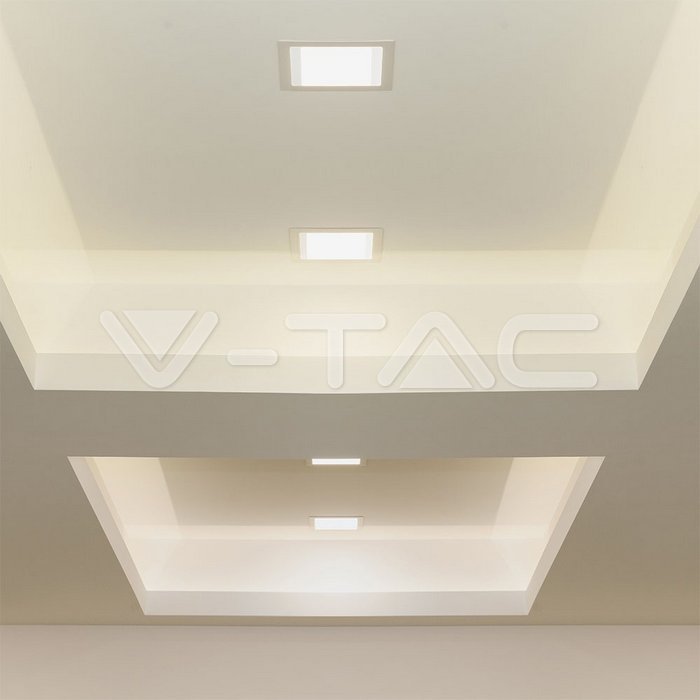

Applications

  • Office Lighting
  • Conference Halls
  • Hospitals
  • Hotels
  • Shopping Malls
  • Showroom and lobby cabin etc.
    • Kitchen and Domestic Lighting
Downloads
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
IES File
Manual
Product Information Sheet
Declaration of Conformity
Specifications
General Information

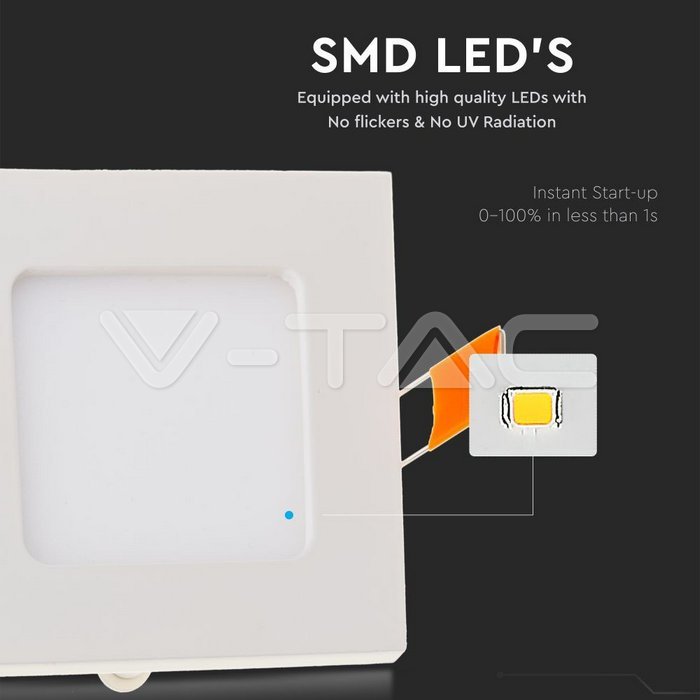

LED Chip
SMD
Lifespan
20 000 hrs
Electrical Data
Wattage
3W
EQ. Wattage
25W
Voltage
AC: 85-265V
Frequency
50/60Hz
Power Factor
> 0.5
Technical Data
Light color
White
Color Temperature
6000K
Luminous flux (lm)
210 lm
Color Rendering Index CRI
>80
Body Details
Material
Aluminium, PMMA, PS
Shape
Square
Type
Recessed
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
66.8 Cd Max.
On/Off cycles
15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
IP Rating
IP20

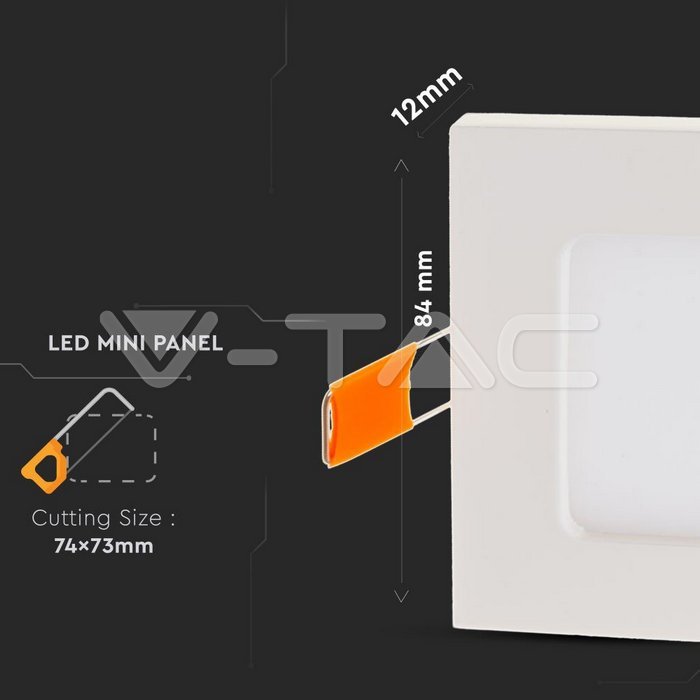

Dimensions
Size
84 x 84 x 12 mm
Diameter
73 x 73 mm
Product Data
Order code
6297
Product code
VT-307 SQ
Items per pack
1
Item Weight
0,155
Item Volume
0,00041325
Items per box
40
EAN Code
3800157616805
Certificates & Standards
Energy efficiency class
G
Certification
CE, EMC, ROHS
Additional
Brand
V-TAC
Warranty
2 years
Dimensions Graphics
Dimensions
Energy Class Graphics
Energy Class
