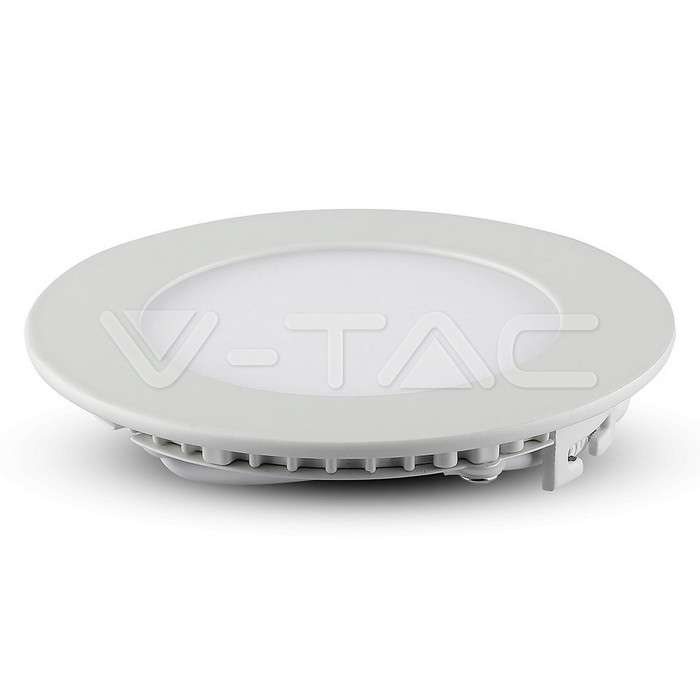

30W LED Panel Premium Round Natural White

SKU: 6428 | VT: VT-3107
Replaced with 216428
6428-2
6428-3
6428-4
6428-5
6428-6
6428-7
6428-8
6428-9

Product benefits

  • Ultra Slim, Contemporary & Elegant Design
  • Higher Light Transmission Rate
  • Exterior shell, cannot be easily damaged
  • No infrared, does not attract flies

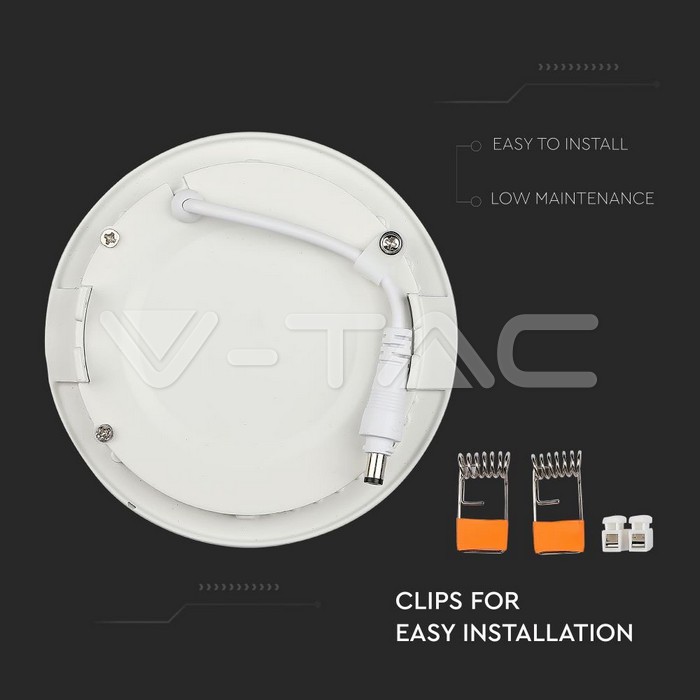

  • Easy to install
  • No Lead or Mercury content
  • Environment friendly
  • Dimmable options available in selected models

Applications

  • Office Lighting
  • Conference Halls
  • Hospitals
  • Hotels
  • Shopping Malls
  • Showroom and lobby cabin etc.
  • Kitchen and Domestic Lighting
Downloads
Technical Specifications



EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
IES File
Manual
Product Information Sheet
Declaration of Conformity
Specifications
General Information

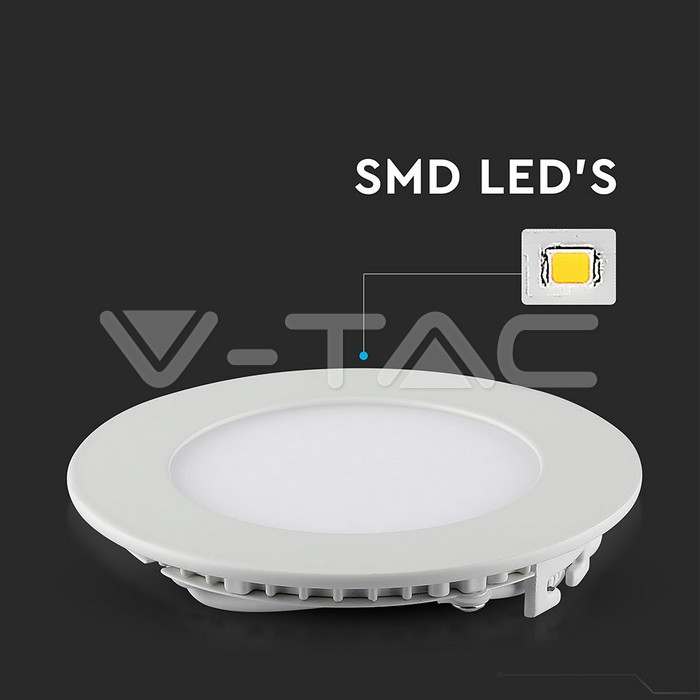

LED Chip
SMD
Lifespan
20 000 hrs
Electrical Data
Wattage
30W
Voltage
AC:85-265V
Frequency
50/60Hz
Power Factor
> 0.9
Technical Data
Light color
Natural White
Color Temperature
4000K
Luminous flux (lm)
2400 lm
Color Rendering Index CRI
>80
Body Details
Material
Aluminium
Shape
Round
Type
Recessed
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
763.94 Cd Max.
On/Off cycles
>15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
IP Rating
IP20

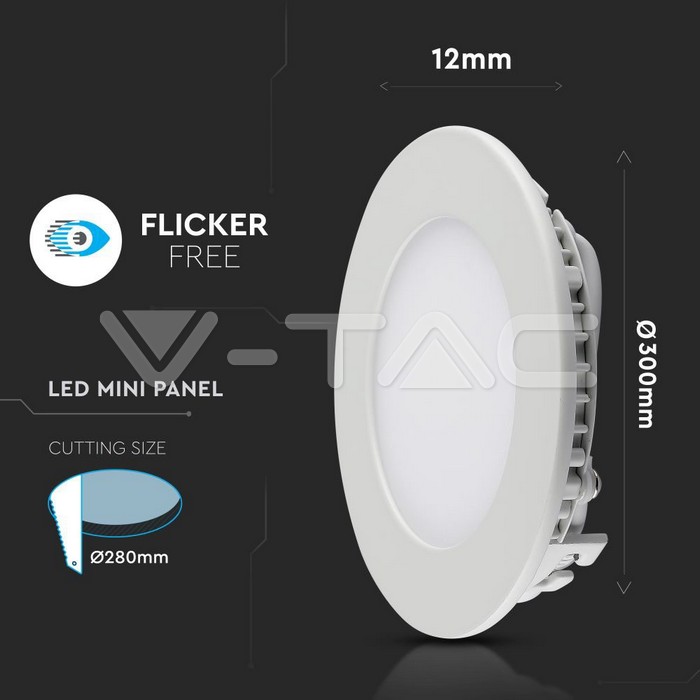

Dimensions
Size
Ø300 x 12 mm
Mounting Size
Ø280 mm
Product Data
Order code
6428
Product code
VT-3107
Item Weight
1,02
Item Volume
0,0038682
Items per box
10
EAN Code
3800157628075
Certificates & Standards
Energy efficiency class
G
Certification
CE
Additional
Brand
V-TAC
Warranty
2 years
Dimensions Graphics
Dimensions
Energy Class Graphics
Energy Class
