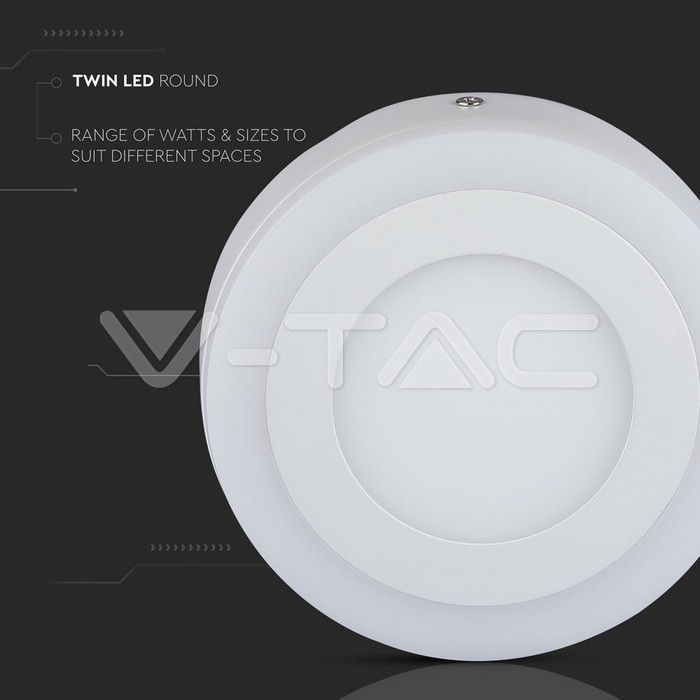

15W LED Panel Surface Twin Round Natural White

SKU: 4894 | VT: VT-1509
4894-2
4894-3
4894-4
4894-5
4894-6
4894-7
4894-8

Product benefits

  • Ultra Slim, Contemporary & Elegant Design
  • Higher Light Transmission Rate
  • Exterior shell, cannot be easily damaged
  • No infrared, does not attract flies

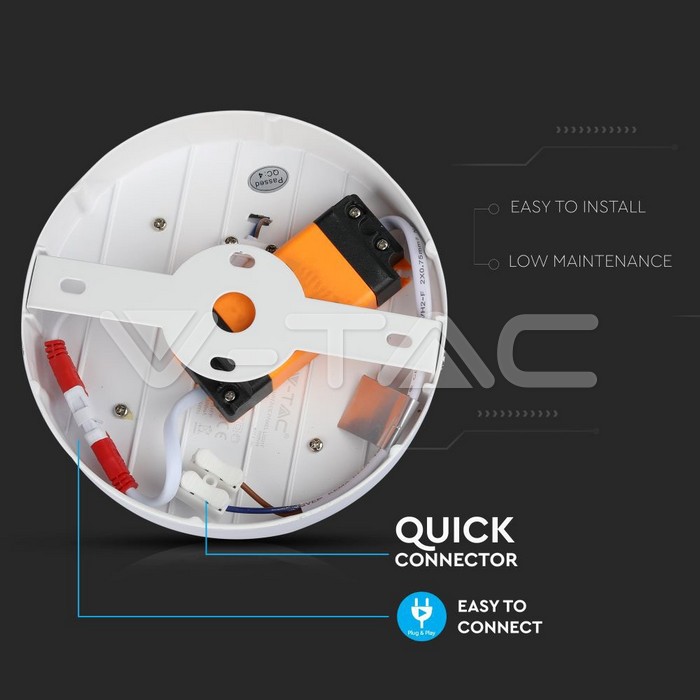

  • Easy to install
  • No Lead or Mercury content
  • Environment friendly
  • Dimmable options available in selected models

Applications

  • Office Lighting
  • Conference Halls
  • Hospitals
  • Hotels
  • Shopping Malls
  • Showroom and lobby cabin etc.
  • Kitchen and Domestic Lighting
Downloads
Technical Specifications
DEKRA License
N/A
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
IES File
Manual
Product Information Sheet
Specifications
General Information
LED Chip
SMD
Lifespan
>20 000 hrs
Electrical Data
Wattage
15W
EQ. Wattage
45W
Voltage
AC: 100-240V
Frequency
50/60Hz
Power Factor
>0.9
Technical Data
Light color
Natural White
Color Temperature
4500K
Luminous flux (lm)
1200 lm
Color Rendering Index CRI
>80
Body Details
Material
PKW
Shape
Round
Type
Surface
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
381.97 Cd Max.
On/Off cycles
15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
IP Rating
IP20
Dimensions
Width
40 mm
Diameter
200 mm
Product Data
Order code
4894
Product code
VT-1509
Items per pack
1
Item Weight
1
Item Volume
0,0063948
Items per box
20
EAN Code
3800157602631
Certificates & Standards
Energy efficiency class
G
Certification
CE, EMC, ROHS
Additional
Brand
V-TAC
Warranty
2 years
Dimensions Graphics
Dimensions
Energy Class Graphics
Energy Class
