100W LED Floodlight SMD SAMSUNG Chip Slim White Body 6400K 120 lm/Watt

SKU: 769 | VT: VT-106
768-2
768-3
768-4
768-5
768-6
768-7
768-8
768-9
768-10
768-11
768-12
768-13
768-14

Product benefits

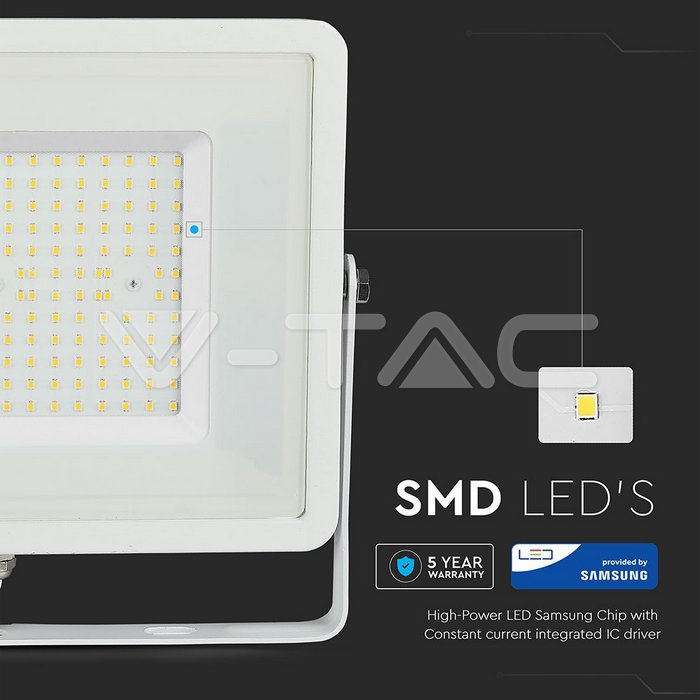

  • LED Chip provided by SAMSUNG
  • White, Natural and Warm White light color options

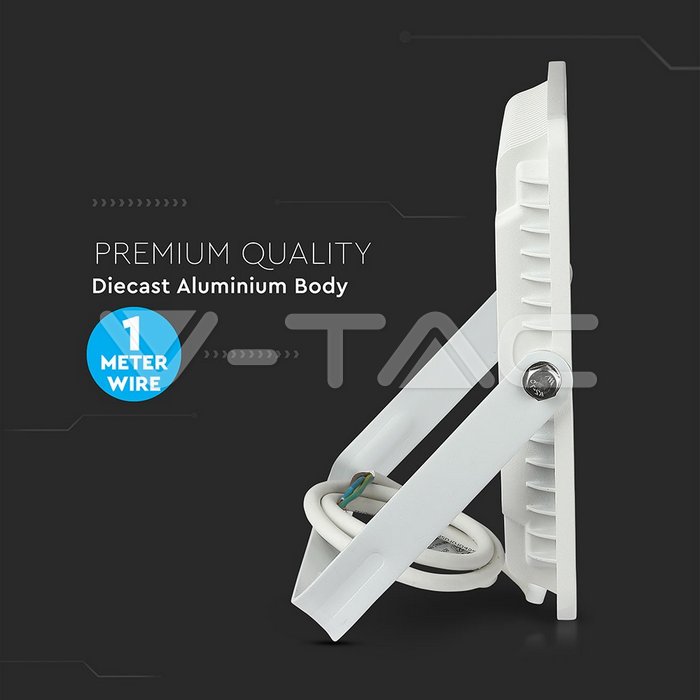

  • Premium quality Aluminium body
  • Corrosion Resistant

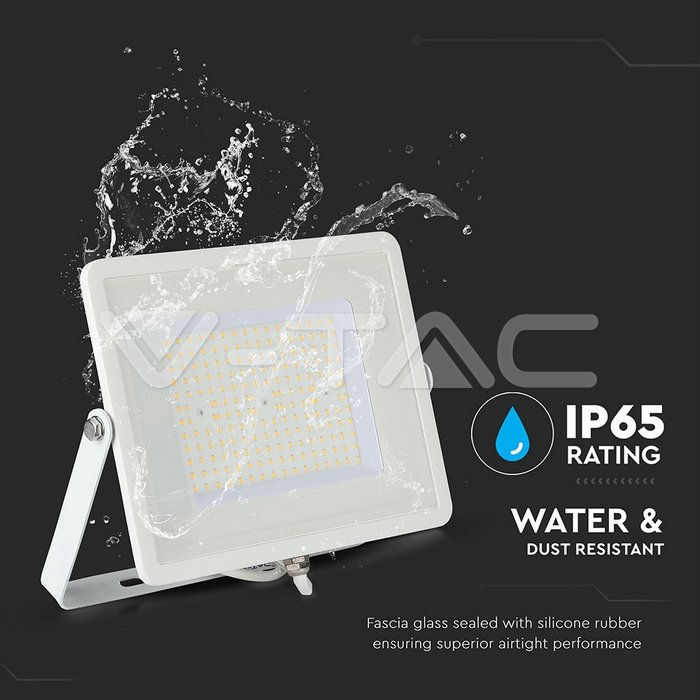

  • Fascia glass sealed with silicone rubber ensuring superior waterproof / airtight performance
  • Built in constant current driver
  • Built in Power supply, No external ballast required

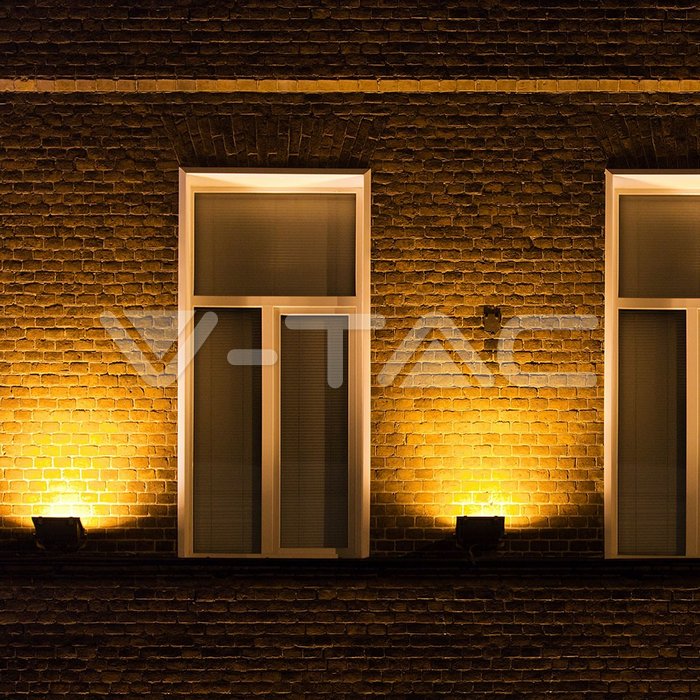

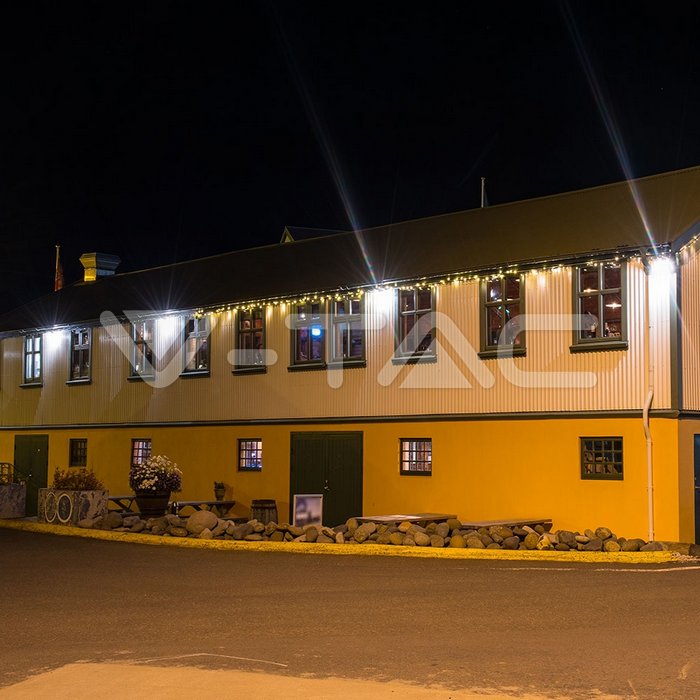

Applications

  • Driveways
  • Gardens
  • Bill Boards
  • Sports Grounds
  • Parking Lots etc.
Downloads
Manual
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
IES File
LM-80
Declaration of Conformity
Product Information Sheet
Specifications
General Information
LED Chip
SAMSUNG Chip
Lifespan
30 000 hrs
Electrical Data
Wattage
100W
Voltage
AC: 220-240V
Frequency
50Hz
Power Factor
>0.9
Technical Data

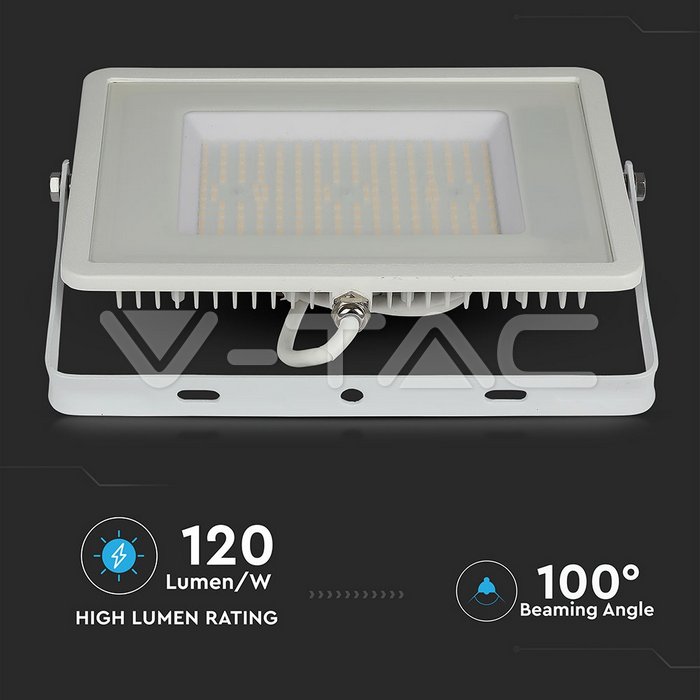

Luminous efficiency (lm/W)
120 lm/W
Light color
White
Color Temperature
6400K
Luminous flux (lm)
12000 lm
Color Rendering Index CRI
>80
Body Details
Material
Aluminium
Capabilities
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Luminous intensity, Cd
5346.56 Cd Max.
On/Off cycles
>15000
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
Compatibility
Sensor Compatibility
IP Rating
IP65
IK Rating
IK05
Dimensions

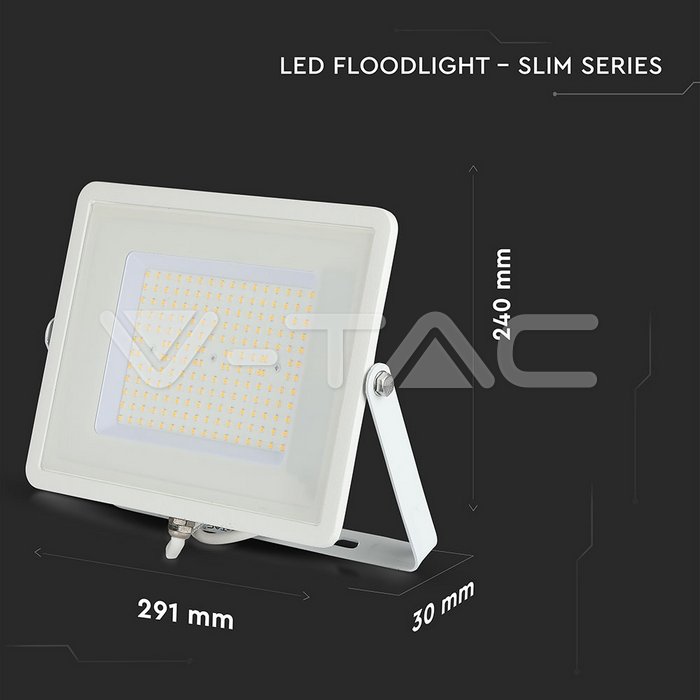

Size
291 x 30 x 240 mm
Product Data
Order code
769
Product code
VT-106
Items per pack
1
Item Weight
1,627
Item Volume
0,002625
Items per box
4
EAN Code
3800157646345
Certificates & Standards
Energy efficiency class
D
Certification
CE, EMC, ROHS
Additional
Brand
V-TAC
Warranty
5 years
Energy Class Graphics
Energy Class
